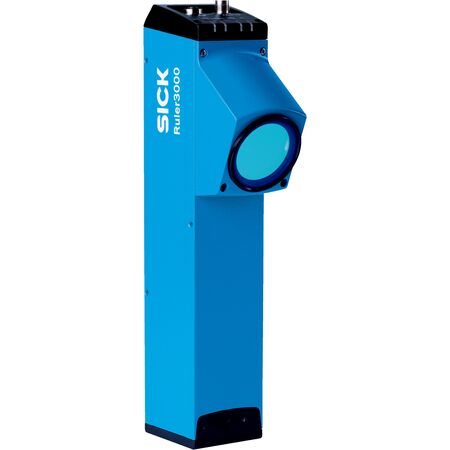

3D Triangulation Sensor V3DU3-060RM21A | Global Shutter Technology | IP65 & IP67 Rated | by SICK
The 3D Triangulation Sensor V3DU3-060RM21A features advanced 3D triangulation technology with a global shutter, making it perfect for industrial automation and quality control applications. With high-speed scanning capabilities of up to 46,000 profiles per second and integrated red laser illumination, it ensures precise measurements in various environments. Its robust IP65 and IP67 rated aluminum housing guarantees durability, making it an ideal choice for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation with global shutter
- Working range: 395 mm to 815 mm
- Field of view example: 500 mm x 290 mm
- Exposure mode: Linear HDR
- Illumination: Integrated red laser, 660 nm ± 15 nm
- Laser class: 2 (complies with EN 60825-1:2014+A11:2021 and FDA requirements except IEC 60825-1 Ed.3)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D measurement, scatter and reflectance measurement supported
- Width at minimum operating distance: 390 mm
- Width at maximum operating distance: 740 mm
- Maximum height range: 420 mm
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65, IP67
- Housing material: Aluminum, color blue
- Window material: Float glass, anti-reflective coated
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI), 7,000 3D profiles/s (full format)
- Data points per profile: 3,200
- Repeatability: 8 µm
- Typical resolution: Z (height) 20 µm to 71 µm, X (width) 168 µm to 313 µm
- Interfaces: Ethernet (GigE Vision standard), UDP/IP, data rate ≤ 1 Gbit/s
- Configuration software: Stream Setup
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 configurable inputs, 10 V to 28.8 V
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 128mm x 336mm x 65mm
- Weight: 2.15 kg
Key Features
- 3D triangulation technology with global shutter
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm, ± 15 nm), Laser class 2
- High-speed scanning with up to 46,000 3D profiles per second
- Ambient light suppression and scatter, reflectance measurement
- IP65 and IP67 rated aluminum housing with anti-reflective coated float glass window
- Supports free running, encoder triggered, and external triggering data synchronization
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor integration and electrical safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated ambient light suppression enhances measurement accuracy reducing waste from errors
- Energy-efficient design with low power consumption (≤ 12 W)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3DU3-060RM21A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
