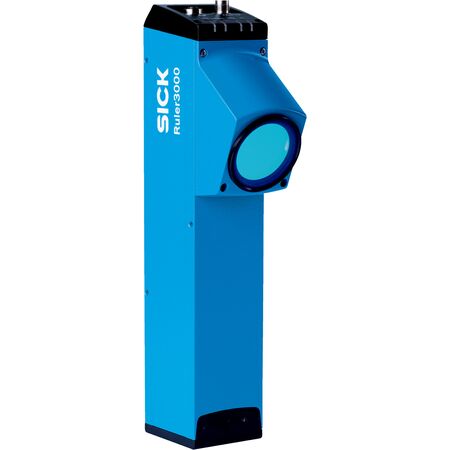

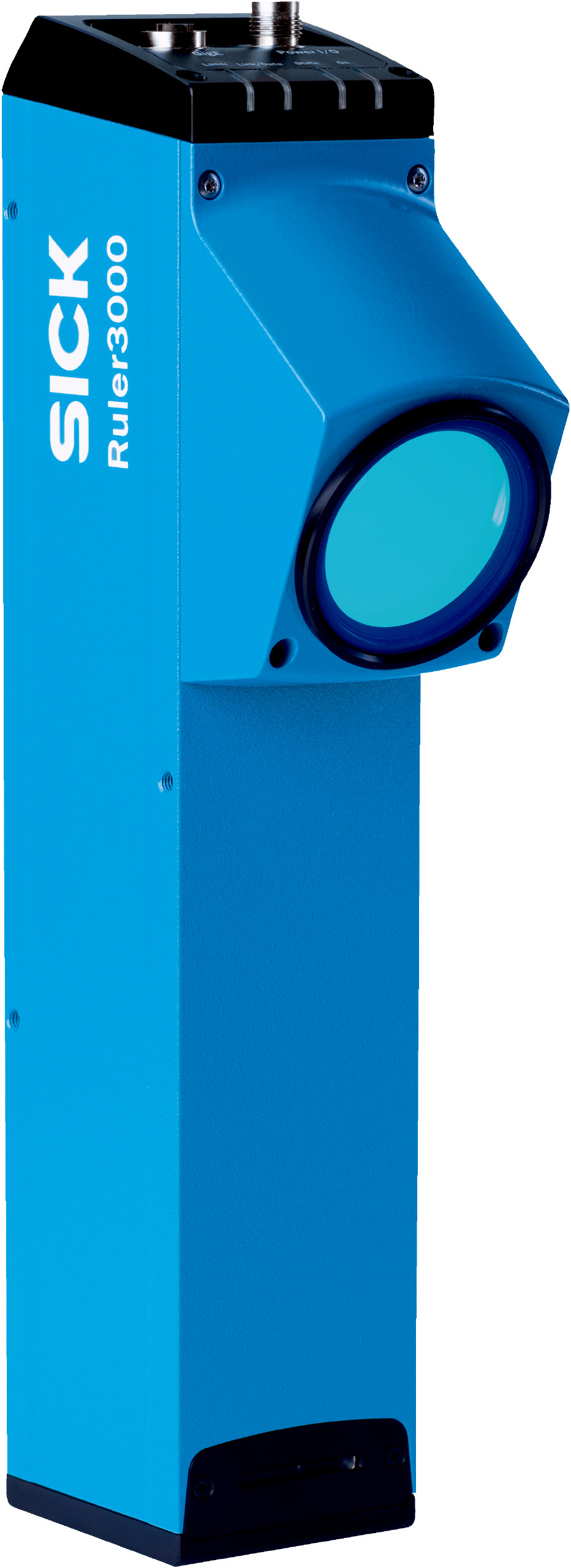

3D Triangulation Sensor V3DU3-060RM25A | Global Shutter Technology | Integrated Red Laser | High Scan Rate | by SICK
The 3D Triangulation Sensor V3DU3-060RM25A utilizes advanced 3D triangulation technology with a global shutter for precise measurements. Ideal for industrial automation and quality control, it features integrated red laser illumination and a high scan rate of up to 46,000 profiles per second. With an IP65/IP67 rated enclosure, this sensor is built to withstand harsh environments while delivering exceptional performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation with global shutter
- Working range: 395 mm to 815 mm
- Field of view example: 500 mm x 290 mm
- Exposure mode: Linear HDR
- Illumination: Integrated red laser, 660 nm ± 15 nm, laser class 2
- Data synchronization: Free running, encoder triggered, external triggering
- 3D measurement, scatter measurement, reflectance measurement supported
- Width at minimum operating distance: 390 mm
- Width at maximum operating distance: 740 mm
- Maximum height range: 420 mm
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Current consumption: ≤ 1.5 A
- Enclosure rating: IP65, IP67
- Housing material: Aluminum, color blue
- Window material: PMMA
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI: 7,000 3D profiles/s full format)
- Data points per profile: 3,200
- Repeatability: 8 µm
- Typical resolution: Z (height) 20 µm to 71 µm, X (width) 168 µm to 313 µm
- Interfaces: Ethernet (GigE Vision standard), UDP/IP, data rate ≤ 1 Gbit/s
- Configuration software: Stream Setup
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 x HIGH = 10 V to 28.8 V, configurable
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 128mm x 336mm x 65mm
- Weight: 2.15 kg
Key Features
- 3D triangulation technology with global shutter
- Integrated red laser illumination (660 nm ± 15 nm), laser class 2
- Pre-calibrated for immediate use
- Streaming capable with free running, encoder triggered, and external triggering
- Ambient light suppression
- Scheimpflug adapter integrated
- High scan/frame rate up to 46,000 3D profiles/s
- Repeatability of 8 µm
- IP65 and IP67 rated enclosure for robust protection
- Aluminum housing with PMMA window
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Integrated illumination reduces need for external lighting, lowering energy consumption
- High precision reduces waste by improving quality control
- Robust IP65/IP67 housing extends product life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3DU3-060RM25A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
