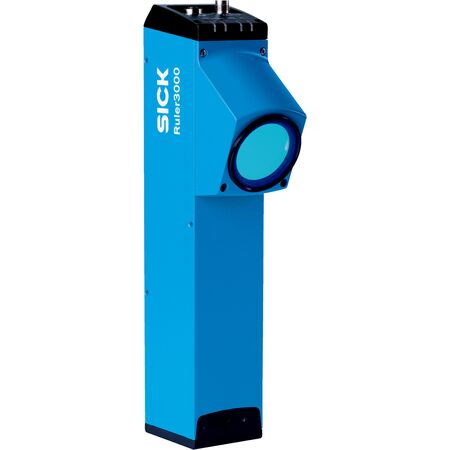

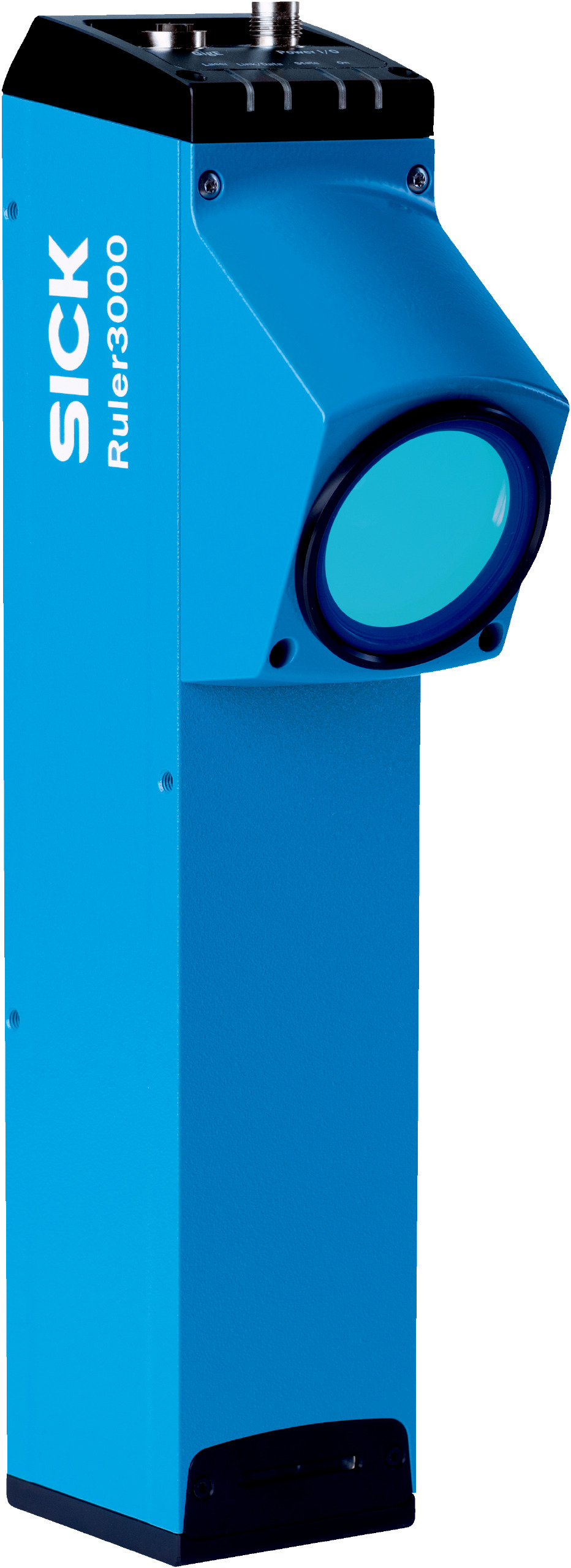

3D Triangulation Sensor V3DU3-060RR21A | Global Shutter Technology | Integrated Red Laser | IP65 & IP67 Rated | by SICK
The 3D Triangulation Sensor V3DU3-060RR21A utilizes advanced 3D triangulation technology with a global shutter for precise measurements. With a working range of 395 mm to 815 mm and integrated red laser illumination, it excels in quality control, dimension measurement, and 3D position determination. Ideal for industrial automation, this sensor features ambient light suppression and supports Ethernet data transmission, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation with global shutter
- Working range: 395 mm to 815 mm
- Field of view example: 500 mm x 290 mm
- Exposure mode: Linear HDR
- Illumination: Integrated red laser, 660 nm ± 15 nm, Laser class 3R
- Data synchronization: Free running, encoder triggered, external triggering
- 3D measurement, scatter and reflectance measurement supported
- Ambient light suppression enabled
- Width at minimum operating distance: 390 mm
- Width at maximum operating distance: 740 mm
- Maximum height range: 420 mm
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65 and IP67
- Housing material: Aluminum, color blue
- Window material: Float glass, anti-reflective coated
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI), 7,000 3D profiles/s (full format)
- Data points per profile: 3,200
- Repeatability: 8 µm
- Typical resolution: Z (height) 20 µm to 71 µm, X (width) 168 µm to 313 µm
- Interfaces: Ethernet with GigE Vision standard, UDP/IP, data rate ≤ 1 Gbit/s
- Configuration software: Stream Setup
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 configurable inputs, HIGH = 10 V to 28.8 V
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 128mm x 336mm x 65mm
- Weight: 2.15 kg
Key Features
- 3D triangulation technology with global shutter
- Pre-calibrated and integrated red laser illumination (660 nm)
- Working range from 395 mm to 815 mm
- High scan/frame rate up to 46,000 3D profiles per second
- Ambient light suppression and scatter, reflectance measurement
- IP65 and IP67 rated aluminum housing with anti-reflective coated float glass window
- Supports Ethernet with GigE Vision standard and UDP/IP data transmission
- Configurable inputs/outputs and encoder interface
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor systems and electrical wiring is recommended to ensure proper setup and compliance with safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated illumination reduces need for external lighting, lowering energy consumption
- High precision reduces waste by improving quality control accuracy
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3DU3-060RR21A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
