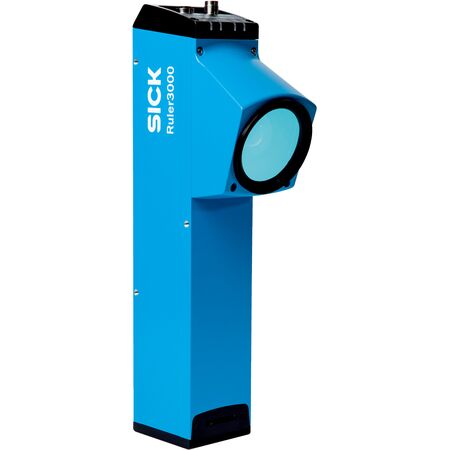

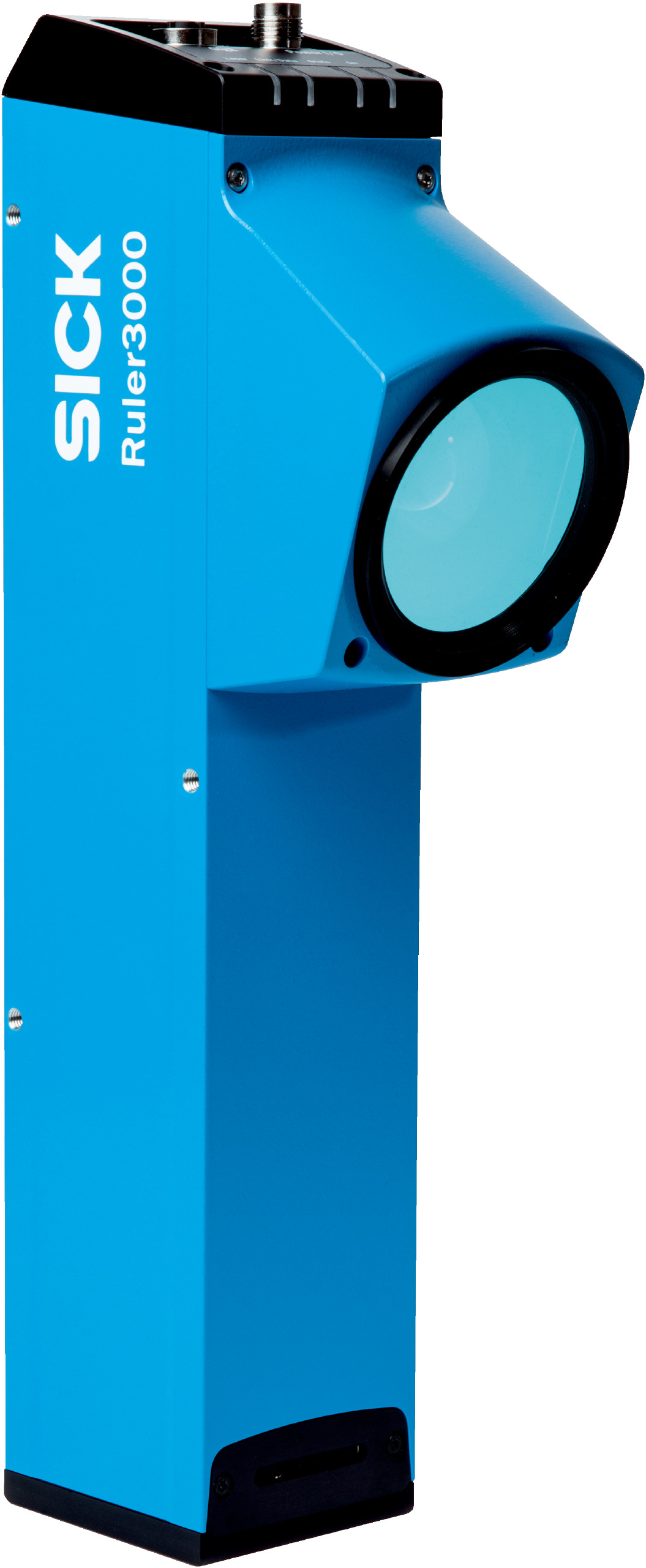

3D Triangulation Sensor V3DU3-120RM25A | Global Shutter Technology | IP65/IP67 Rated | High-Speed Streaming | by SICK
The 3D Triangulation Sensor V3DU3-120RM25A utilizes advanced 3D triangulation technology with a global shutter for precise measurements. Ideal for industrial automation and quality control, it features high-speed streaming of up to 46,000 3D profiles per second and robust aluminum housing with IP65/IP67 rating. This sensor is pre-calibrated for immediate use, making it perfect for applications like dimension measurement and quality monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation with global shutter
- Working range: 430 mm to 1,445 mm
- Field of view example: 1,200 mm x 345 mm
- Exposure mode: Linear HDR
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D measurement, scatter and reflectance measurement supported
- Width at minimum operating distance: 540 mm
- Width at maximum operating distance: 1,680 mm
- Maximum height range: 1,015 mm
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin X-coded socket for Gigabit Ethernet
- Supply voltage: 24 V DC ±10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65, IP67
- Housing material: Aluminum, color blue
- Window material: PMMA
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI), 7,000 3D profiles/s (full format)
- Data points per profile: 3,200
- Repeatability: 6.6 µm (Z axis)
- Typical resolution: Z resolution 33 µm to 265 µm, X resolution 246 µm to 710 µm
- Interfaces: Ethernet (GigE Vision standard), UDP/IP, data rate ≤ 1 Gbit/s
- Configuration software: Stream Setup
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 configurable inputs, 10 V to 28.8 V
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 138mm x 336mm x 77mm
- Weight: 2.3 kg
Key Features
- 3D triangulation technology with global shutter
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm, Class 2 laser)
- High-speed streaming with up to 46,000 3D profiles per second
- Ambient light suppression and scatter, reflectance measurement
- Scheimpflug adapter integrated
- Robust aluminum housing with IP65/IP67 rating
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup, calibration, and compliance with electrical safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED laser illumination reduces energy consumption compared to traditional lighting
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V3DU3-120RM25A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
