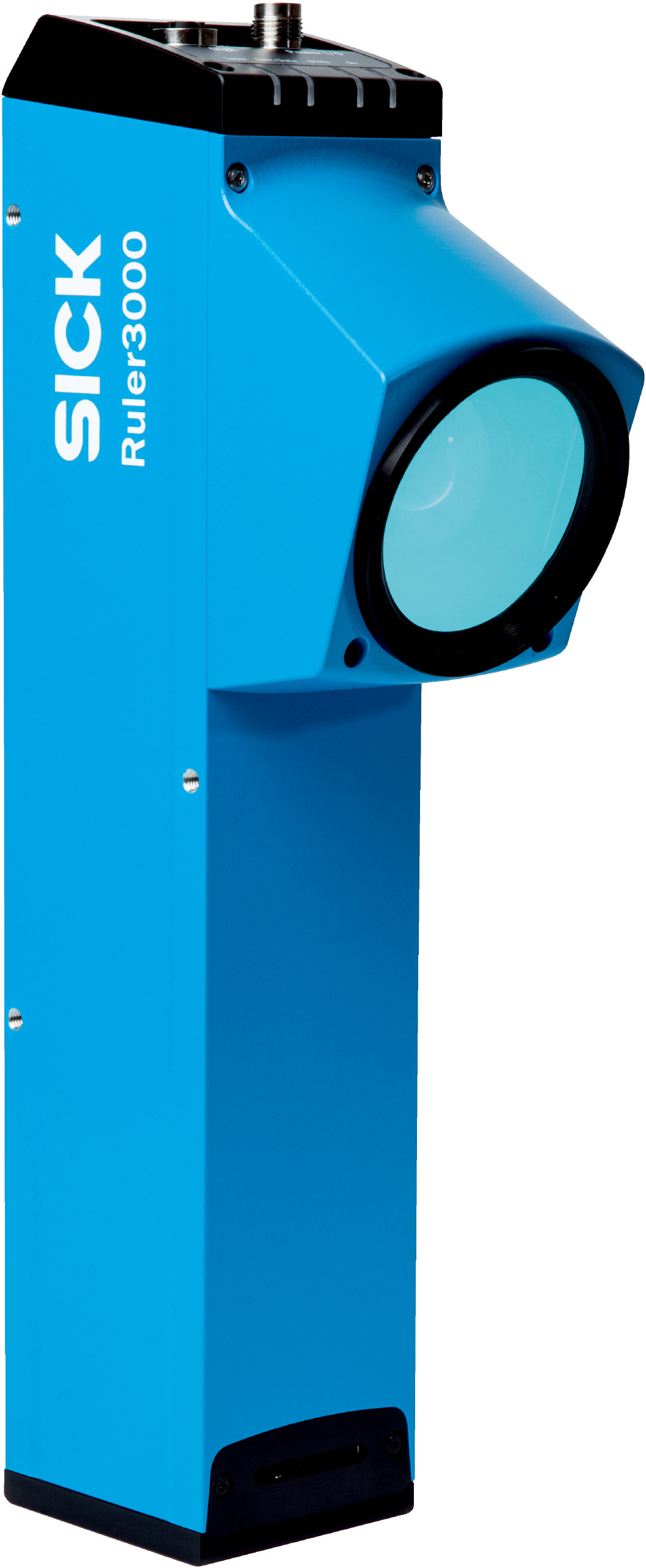

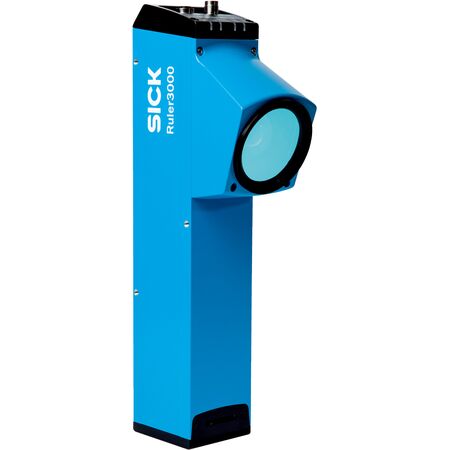

3D Triangulation Sensor V3DU3-120RR21A | Global-Shutter Technology | Integrated Red Laser | IP65/IP67 Rated | by SICK
The 3D Triangulation Sensor V3DU3-120RR21A utilizes advanced 3D triangulation technology with global-shutter capabilities, making it perfect for industrial automation and quality control applications. With a working range of 430 mm to 1,445 mm and integrated red laser illumination, it ensures precise measurements and reliable performance in various environments. Ideal for detecting standard objects and dimension measurement, this sensor is pre-calibrated for immediate use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Shutter technology: Global-Shutter
- Working range: 430 mm to 1,445 mm
- Field of view example: 1,200 mm x 345 mm
- Exposure mode: Linear HDR
- Illumination: Integrated red laser, 660 nm ± 15 nm
- Laser class: 3R (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D, scatter, and reflectance measurement capabilities
- Ambient light suppression included
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65, IP67
- Housing material: Aluminum with blue color
- Window material: Float glass, anti-reflective coated
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI), 7,000 3D profiles/s (full format)
- Data points per profile: 3,200
- Repeatability: 6.6 µm for Z axis
- Typical resolution: Z 33 µm to 265 µm, X 246 µm to 710 µm
- Interfaces: Ethernet (GigE Vision Standard), UDP/IP, 4 configurable inputs/outputs
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 138mm x 336mm x 77mm
- Weight: 2.3 kg
Key Features
- 3D triangulation technology with streaming capability
- Pre-calibrated for immediate use
- Global-Shutter shutter technology
- Working range from 430 mm to 1,445 mm
- Integrated red laser illumination (660 nm, ± 15 nm)
- Laser class 3R compliant with EN 60825-1 and FDA requirements
- Supports free running, encoder triggered, and external triggering data synchronization
- Measures 3D, scatter, and reflectance
- Ambient light suppression
- Integrated Scheimpflug adapter
- Wide field of view from 540 mm to 1,680 mm width and up to 1,015 mm height
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup, calibration, and compliance with electrical standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated ambient light suppression enhances measurement accuracy reducing waste from errors
- Energy-efficient operation with power consumption ≤ 12 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3DU3-120RR21A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
