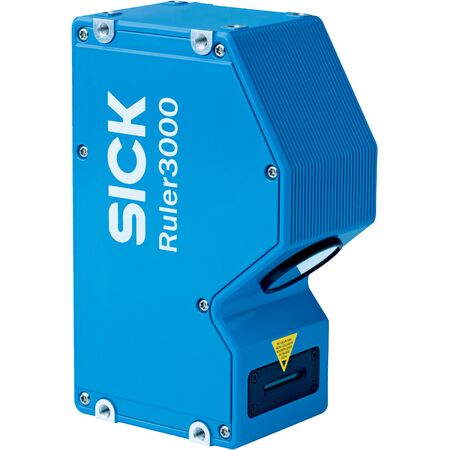

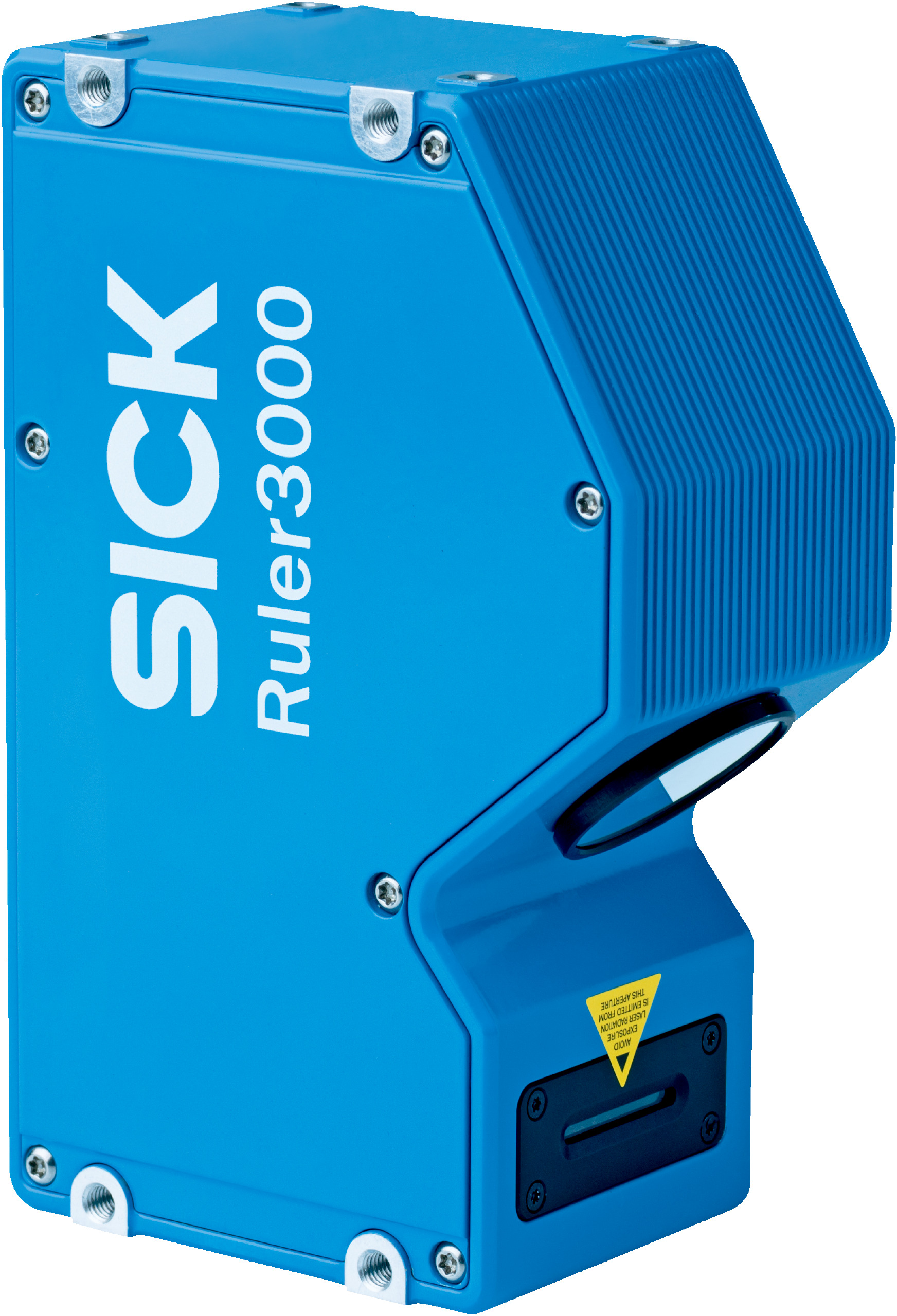

3D Triangulation Sensor V3DX3-002BR21A | Global-Shutter Technology | Integrated Blue Laser | High Scan Rate | by SICK
The 3D Triangulation Sensor V3DX3-002BR21A utilizes advanced 3D triangulation technology with global-shutter capabilities, making it perfect for precision measurement applications in industrial automation and quality control. With an integrated blue laser illumination and a high scan rate of up to 46,000 profiles per second, it ensures accurate detection and measurement of standard objects, contours, and volumes, while its robust aluminum housing provides IP65 and IP67 protection for durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Shutter technology: Global-Shutter
- Working range: 46.7 mm to 55.4 mm
- Field of view: 25 mm x 6 mm
- Exposure mode: Linear HDR
- Illumination: Integrated blue laser, 450 nm ± 10 nm
- Laser class: 3R (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D, scatter, and reflectance measurement capabilities
- Ambient light suppression enabled
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin X-coded socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65 and IP67
- Housing material: Aluminum with blue color
- Window material: Float glass, anti-reflective coated
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI: 7,000 3D profiles/s full format)
- Data points per profile: 3,200
- Repeatability: 0.3 µm
- Typical resolution: Z (height) 0.8 µm to 1 µm, X (width) 11 µm to 12 µm
- Interfaces: Ethernet (GigE Vision standard), UDP/IP, configurable inputs/outputs
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 100mm x 154mm x 60.3mm
- Weight: 1.08 kg
Key Features
- 3D triangulation technology with global-shutter shutter technology
- Pre-calibrated and integrated blue laser illumination (450 nm ± 10 nm)
- Working range from 46.7 mm to 55.4 mm with example field of view 25 mm x 6 mm
- Linear HDR exposure mode for enhanced image quality
- Supports free running, encoder triggered, and external triggering data synchronization
- Measures 3D, scatter, and reflectance with ambient light suppression
- Integrated Scheimpflug adapter for precise measurements
- High scan/frame rate up to 46,000 3D profiles per second
- Repeatability of 0.3 µm and typical resolution down to 0.8 µm in height
- Robust aluminum housing with IP65 and IP67 enclosure rating
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated LED laser illumination reduces energy consumption compared to traditional lighting
- High precision reduces waste by improving quality control and reducing defects
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V3DX3-002BR21A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and precision measurement applications.
