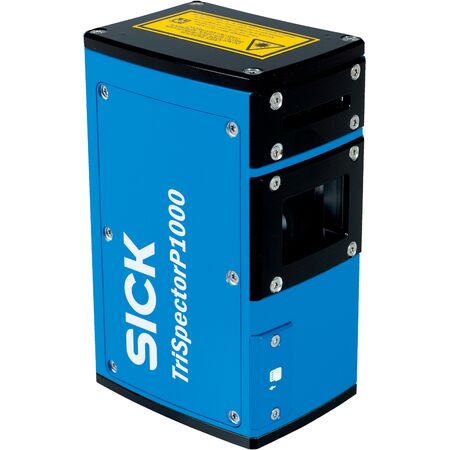

3D Triangulation Sensor V3T11P-MR12A8 | Integrated Red Laser | IP67 Rated | by SICK
The 3D Triangulation Sensor V3T11P-MR12A8 utilizes advanced 3D triangulation technology with an integrated red laser for precise measurements. With a working range of 56 mm to 116 mm and a high scan rate of 5,000 profiles per second, it's perfect for applications in industrial automation and quality control. Built to withstand harsh environments with an IP67 rating, this sensor is ideal for detecting objects, level measuring, and quality monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 56 mm to 116 mm
- Field of view: 65 mm x 15 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Width at minimum operating distance: 40 mm
- Width at maximum operating distance: 75 mm
- Maximum height range: 60 mm
- Imaging angle: 65°
- Scan/frame rate: 5,000 3D profiles/s
- Maximum number of profiles per image: 2,500
- Data points per profile: 1,536
- Height resolution: 20 µm to 50 µm
- 3D profile resolution: 0.049 mm/px
- Connection types: M12 12-pin male (voltage supply, I/O), M12 8-pin socket (Gigabit Ethernet), M12 8-pin female (encoder)
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA without output load
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: PMMA
- Data transmission rate: ≤ 1,000 Mbit/s
- Digital inputs: 3
- Configurable outputs: 4
- Encoder interface: RS-422 / TTL
- Maximum encoder frequency: 300 kHz
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Electromagnetic compatibility: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 84mm x 136mm x 62mm
- Weight: 0.9 kg
Key Features
- 3D triangulation technology
- Programmable with SICK algorithm API HALCON
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm ± 7 nm)
- Laser class 2 compliant with EN 60825-1 and FDA performance requirements
- Wide working range from 56 mm to 116 mm
- High scan/frame rate of 5,000 3D profiles per second
- Data transmission via Ethernet (TCP/IP) and Serial (RS-232, RS-422)
- IP67 rated enclosure for robust protection
- Anodized aluminum housing with PMMA window
- Supports web server operator interface and SICK AppStudio configuration software
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor integration and electrical wiring standards to ensure safety and optimal performance.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number measuring
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 11 W)
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3T11P-MR12A8 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and precise measurement applications.
