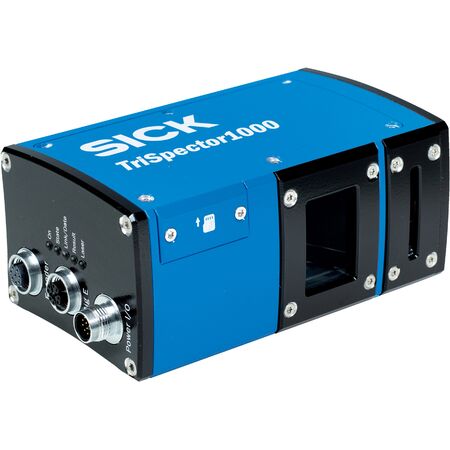

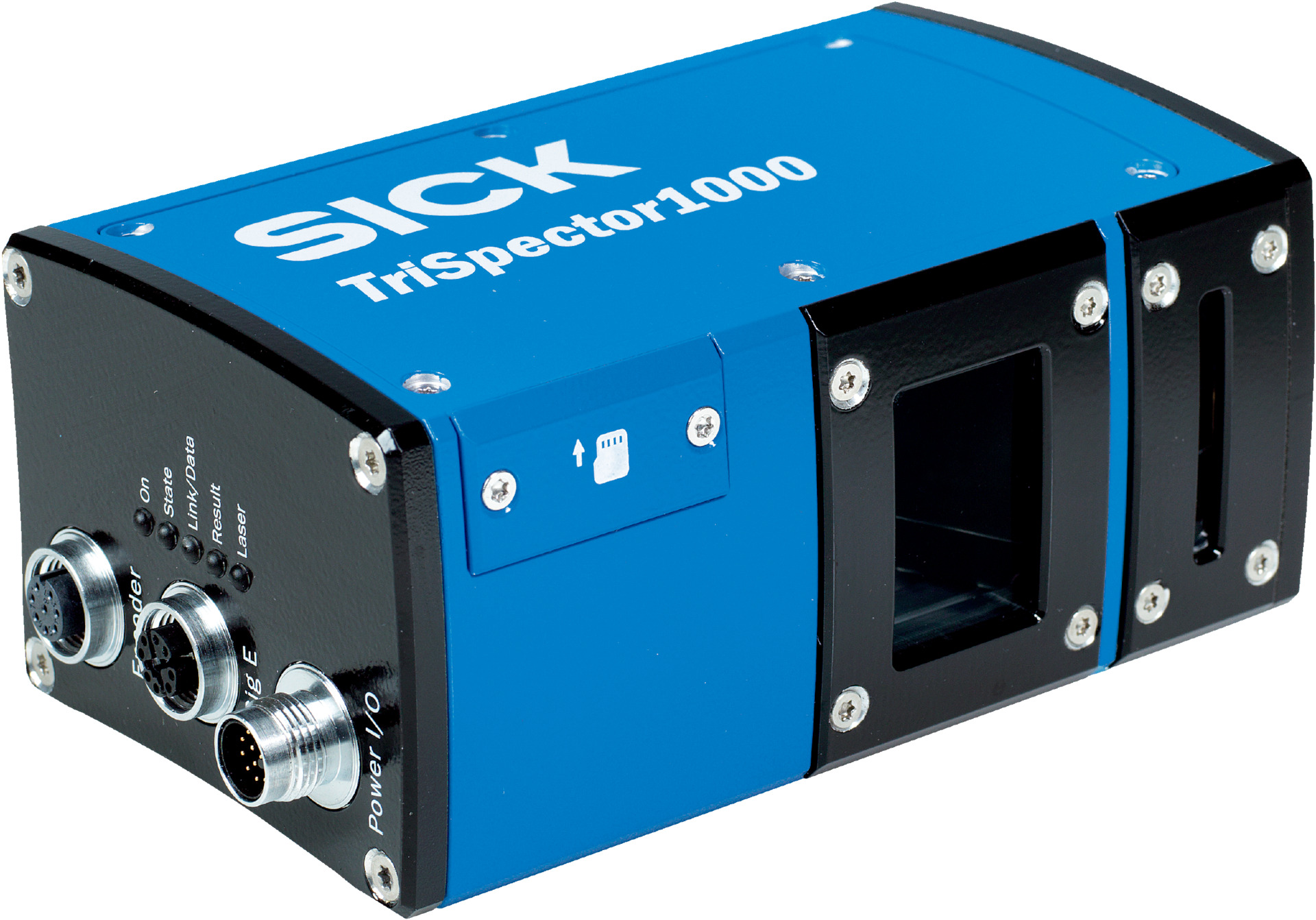

3D Triangulation Sensor V3T11S-MR12A7 | 5,000 Profiles/Second | IP67 Rated | by SICK
The 3D Triangulation Sensor V3T11S-MR12A7 utilizes advanced 3D triangulation technology to deliver high-speed scanning at 5,000 profiles per second. With a working range of 56 mm to 116 mm and integrated red laser illumination, it's perfect for applications in industrial automation, quality control, and precise measurement. Built for durability with an IP67 rating, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 56 mm to 116 mm
- Field of view: 65 mm x 15 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Scan/frame rate: 5,000 3D profiles per second
- Data points per profile: 1,536
- Height resolution: 20 µm to 50 µm
- 3D profile resolution: 0.049 mm/px
- Connection types: M12 12-pin male, M12 8-pin socket (Gigabit Ethernet), M12 8-pin female (encoder)
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Enclosure rating: IP67
- Housing material: Anodized aluminum
- Window material: Glass
- Operating temperature: 0°C to +45°C
- Storage temperature: -20°C to +70°C
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 84mm x 136mm x 62mm
- Weight: 0.9 kg
Key Features
- 3D triangulation technology
- Configurable and pre-calibrated
- Integrated red laser illumination (660 nm)
- Laser class 2 compliant with EN and IEC standards
- Working range from 56 mm to 116 mm
- Example field of view 65 mm x 15 mm
- High scan/frame rate of 5,000 3D profiles per second
- Data points per profile: 1,536
- Height resolution between 20 µm and 50 µm
- 3D profile resolution of 0.049 mm/px
- IP67 rated enclosure for robust protection
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supports Ethernet TCP/IP and serial RS-232/RS-422 interfaces
- Digital inputs and outputs available
- Operating temperature range 0°C to +45°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and compliance with safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number monitoring and controlling
- Quality monitoring
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 11 W)
- Durable anodized aluminum housing extends product lifespan reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK V3T11S-MR12A7 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
