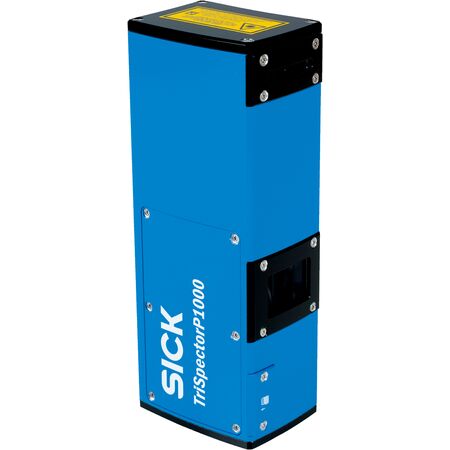

3D Triangulation Sensor V3T12P-MR32A7 | 5,000 Profiles/Second | IP67 Rated | by SICK
The 3D Triangulation Sensor V3T12P-MR32A7 utilizes advanced 3D triangulation technology to deliver high-speed scanning at 5,000 profiles per second. With a robust IP67 rated anodized aluminum housing, it's perfect for industrial automation, quality control, and precise measurement applications. Ideal for detecting standard objects and monitoring dimensions, this sensor is pre-calibrated for immediate use, ensuring efficiency and reliability in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 141 mm to 541 mm
- Field of view: 270 mm x 100 mm
- Illumination: Integrated red laser, 660 nm ±7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Scan/frame rate: 5,000 3D profiles per second
- Data points per profile: 1,536
- Height resolution: 40 µm to 280 µm
- 3D profile resolution: 0.215 mm/px
- Connection types: M12 connectors (12-pin male, 8-pin socket, 8-pin female)
- Supply voltage: 24 V DC ±20%
- Power consumption: ≤ 11 W
- Enclosure rating: IP67
- Housing material: Anodized aluminum
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 84mm x 217mm x 62mm
- Weight: 1.3 kg
Key Features
- 3D triangulation technology
- Programmable with SICK algorithm API HALCON
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm, ±7 nm)
- Laser class 2 compliant with EN 60825-1 and FDA requirements
- Working range from 141 mm to 541 mm
- Field of view approximately 270 mm x 100 mm
- High scan/frame rate of 5,000 3D profiles per second
- Data transmission via Ethernet (TCP/IP) and Serial (RS-232, RS-422)
- Robust IP67 rated anodized aluminum housing
- Supports web server operator interface and SICK AppStudio configuration software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number monitoring and controlling
- Quality monitoring
- 3D position determination
Standards & Compliance
- Complies with AS/NZS 61000-6-2:2005 / AS/NZS 61000-6-3:2007 for Electromagnetic Compatibility (EMC)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 11 W
- Durable anodized aluminum housing extends product lifespan reducing waste
- Complies with China-RoHS environmental standards
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK V3T12P-MR32A7 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
