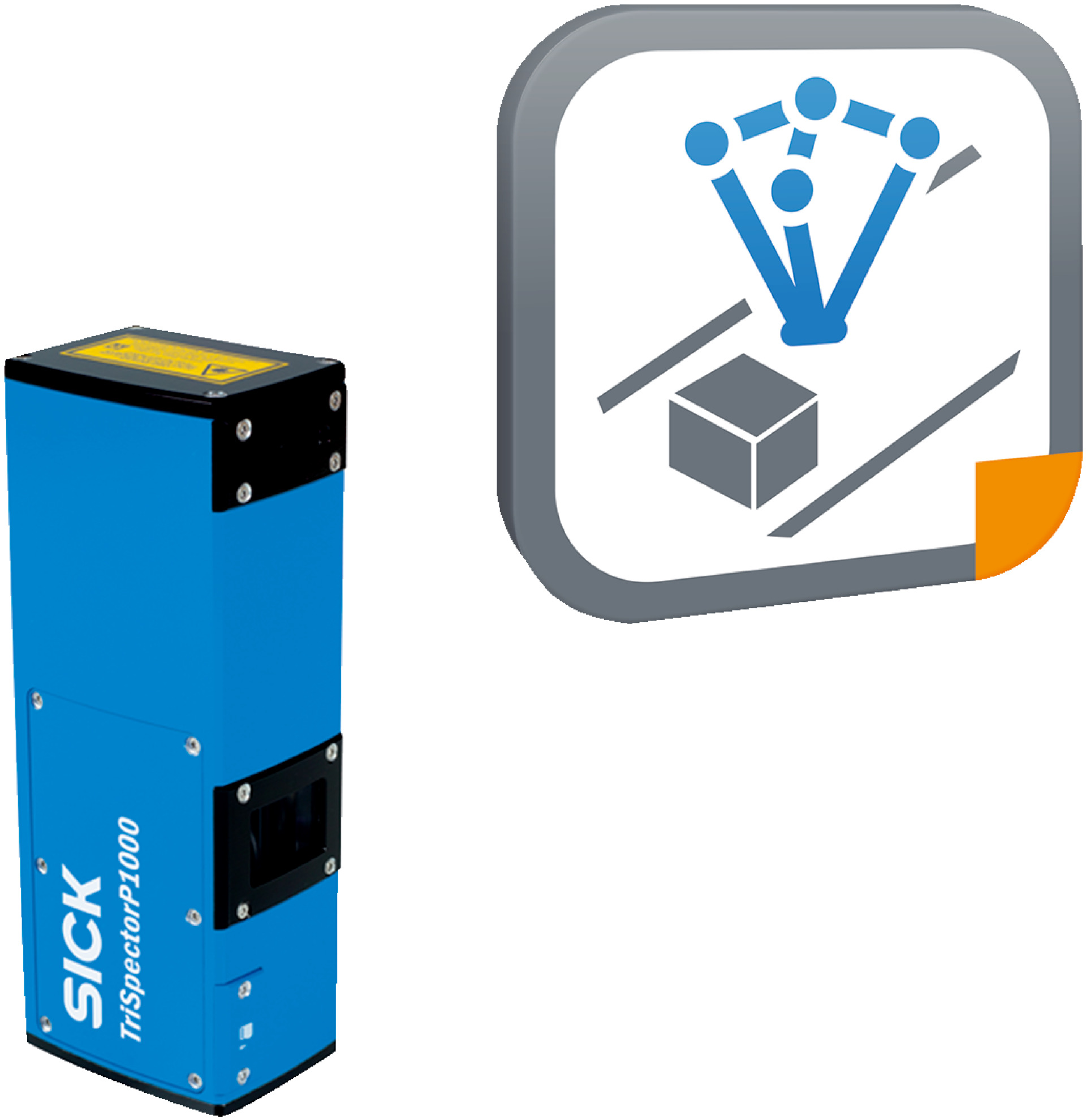

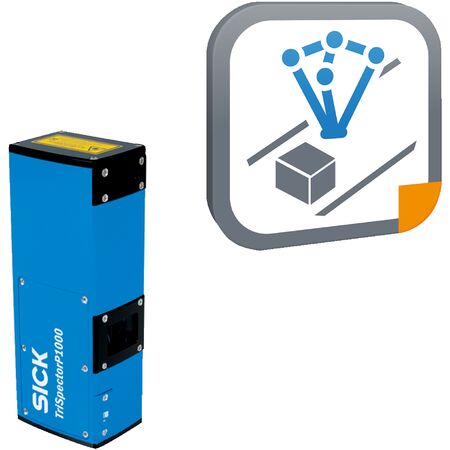

3D Triangulation Sensor V3T12P-MR32A7S50 | 5,000 Profiles/Second | IP67 Rated | by SICK
The 3D Triangulation Sensor V3T12P-MR32A7S50 utilizes advanced 3D triangulation technology for precise measurements, making it ideal for industrial automation and robotics. With a wide working range of 141 mm to 541 mm and a high scan rate of 5,000 profiles per second, this sensor ensures accurate 3D object measurement and inspection. Its robust IP67 rated anodized aluminum housing guarantees durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 141 mm to 541 mm
- Field of view: 270 mm x 100 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Scan/frame rate: 5,000 3D profiles per second
- Data points per profile: 1,536
- Height resolution: 40 µm to 280 µm
- 3D profile resolution: 0.215 mm/px
- Connection types: M12 connectors (12-pin male, 8-pin socket, 8-pin female)
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Enclosure rating: IP67
- Housing material: Anodized aluminum
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 84mm x 217mm x 62mm
- Weight: 1.3 kg
Key Features
- 3D triangulation technology for precise measurement
- Programmable and pre-calibrated for ease of use
- Integrated red laser illumination (660 nm) with laser class 2 safety
- Wide working range from 141 mm to 541 mm
- High scan/frame rate of 5,000 3D profiles per second
- Robust IP67 rated anodized aluminum housing
- Multiple interfaces including Ethernet (TCP/IP), Serial (RS-232, RS-422), and encoder interface
- Supports SICK algorithm API, HALCON, 3D Belt Pick, and SensorApp toolkits
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation and robotics
- 3D object measurement and inspection
- Quality control in manufacturing
- Material handling and logistics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 11 W
- Durable anodized aluminum housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3T12P-MR32A7S50 3D Triangulation Sensor is available for immediate purchase. Ideal for industrial automation, robotics, and precision measurement applications.
