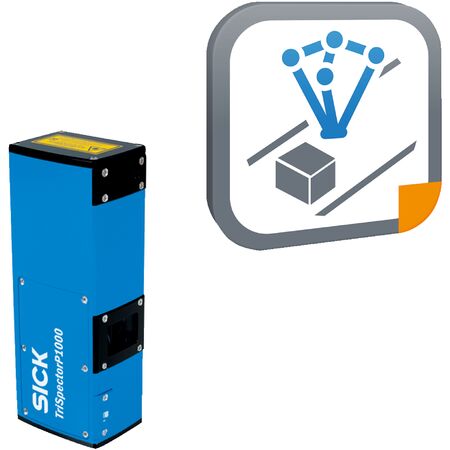

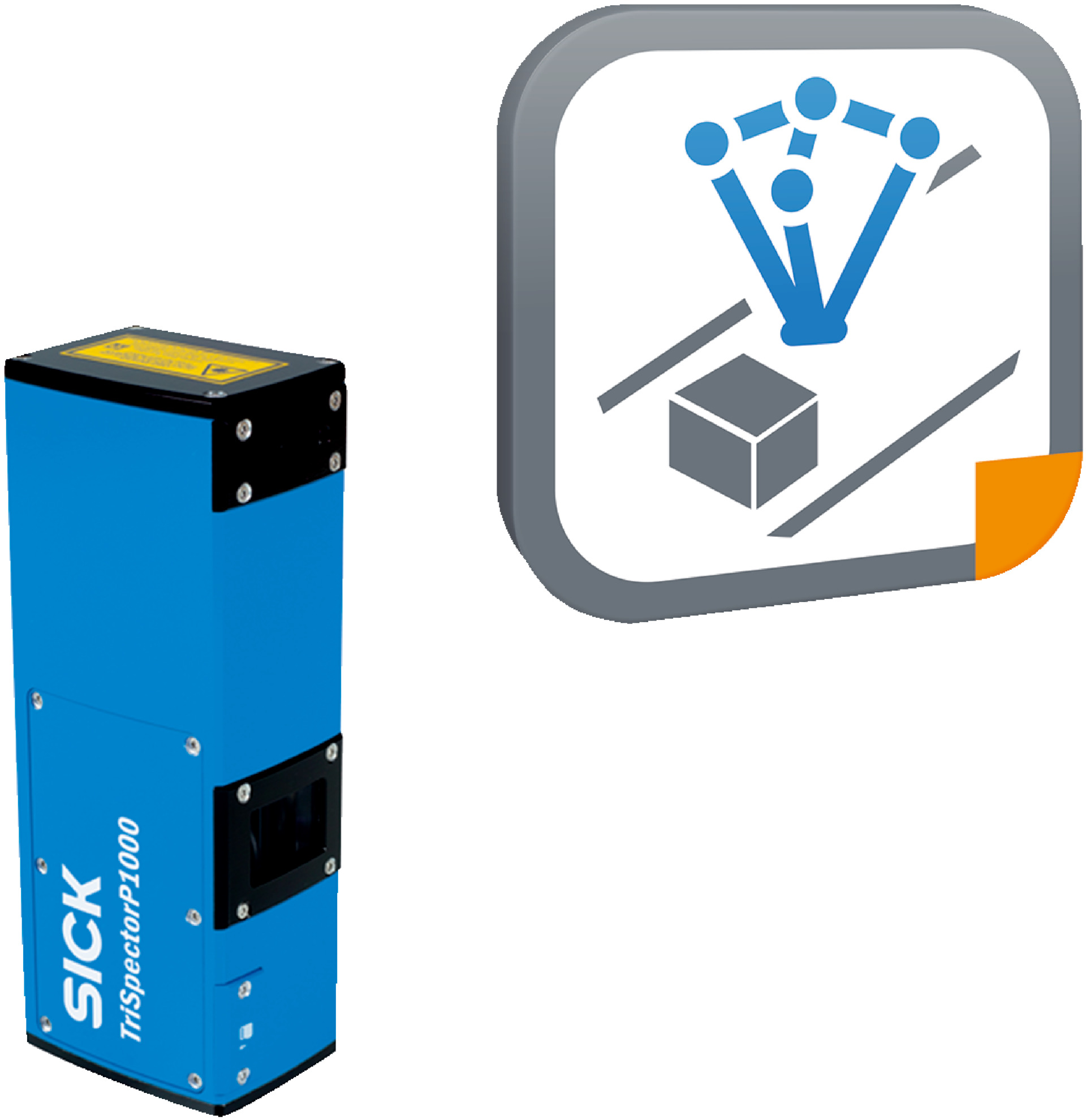

3D Triangulation Sensor V3T12P-MR32A8S50 | Integrated Red Laser | IP67 Rated | by SICK
The 3D Triangulation Sensor V3T12P-MR32A8S50 utilizes advanced 3D triangulation technology for precise measurements, making it ideal for industrial automation and robotics. With a wide working range of 141 mm to 541 mm and a high scan rate of 5,000 profiles per second, this sensor is perfect for quality control and material handling applications. Its robust IP67 rated anodized aluminum housing ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 141 mm to 541 mm
- Field of view example: 270 mm x 100 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Width at minimum operating distance: 90 mm
- Width at maximum operating distance: 330 mm
- Maximum height range: 400 mm
- Imaging angle: 65°
- Scan/frame rate: 5,000 3D profiles/s
- Maximum number of profiles per image: 2,500
- Data points per profile: 1,536
- Height resolution: 40 µm to 280 µm
- 3D profile resolution: 0.215 mm/px
- Connection types: M12 connectors (12-pin male, 8-pin socket, 8-pin female)
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA without output load
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: PMMA
- Data transmission rate: ≤ 1,000 Mbit/s
- Digital inputs: 3
- Configurable outputs: 4
- Encoder interface: RS-422 / TTL
- Maximum encoder frequency: 300 kHz
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- EMC compliance: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 84mm x 217mm x 62mm
- Weight: 1.3 kg
Key Features
- 3D triangulation technology for precise measurement
- Programmable with SICK algorithm API and HALCON 3D Belt Pick SensorApp
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm) with laser class 2
- Wide working range from 141 mm to 541 mm
- High scan/frame rate of 5,000 3D profiles per second
- Robust IP67 rated anodized aluminum housing
- Multiple interfaces including Ethernet (TCP/IP), Serial (RS-232, RS-422), and encoder interface
- Supports web server operator interface and configuration via SICK AppStudio
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensors and electrical safety standards.
Applications
- Industrial automation and robotics
- 3D object measurement and inspection
- Quality control in manufacturing
- Material handling and logistics
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 11 W)
- Durable anodized aluminum housing extends product life and reduces waste
- Pre-calibrated sensor reduces setup time and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3T12P-MR32A8S50 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, robotics, and precise 3D measurement applications.
