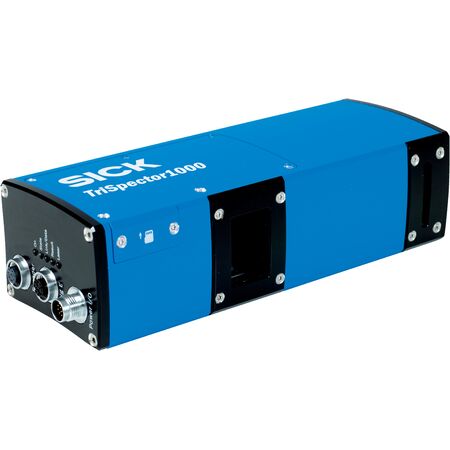

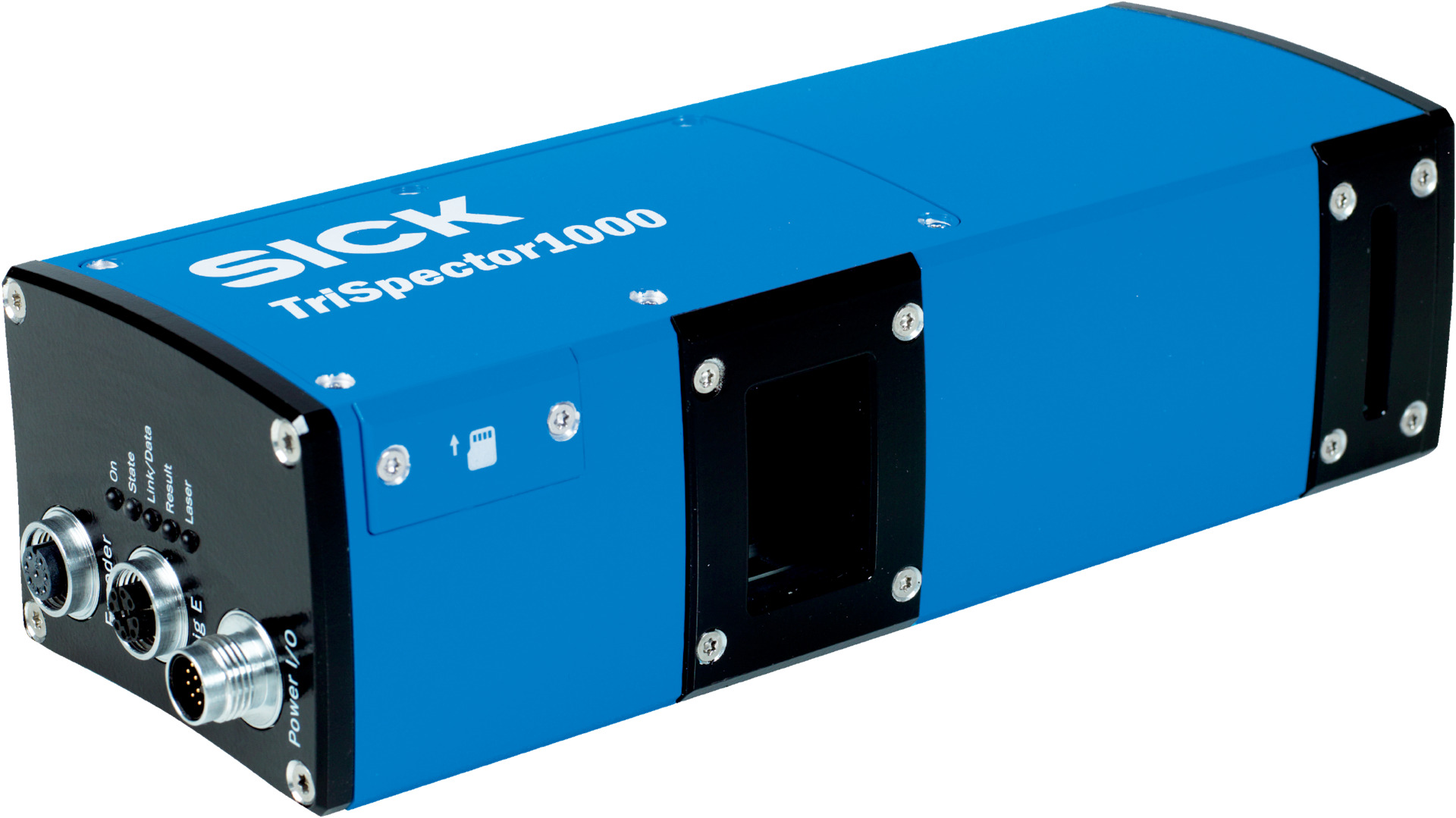

3D Triangulation Sensor V3T12S-MR32A8 | Integrated Red Laser | IP67 Rated | by SICK
The 3D Triangulation Sensor V3T12S-MR32A8 utilizes advanced 3D triangulation technology for precise position determination and quality control in industrial automation. With a working range of 141 mm to 541 mm and a high scan rate of 5,000 profiles per second, it’s perfect for applications like dimension measuring and contour detection. Its robust IP67 rated enclosure ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 141 mm to 541 mm
- Field of view: 270 mm x 100 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (complies with EN 60825-1 and FDA requirements)
- Scan/frame rate: 5,000 3D profiles per second
- Data points per profile: 1,536
- Height resolution: 40 µm to 280 µm
- 3D profile resolution: 0.215 mm/px
- Connection types: M12 connectors (12-pin, 8-pin), Ethernet, RS-232, RS-422, TTL
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Enclosure rating: IP67
- Housing material: Anodized aluminum
- Window material: PMMA
- Operating temperature: 0 °C to +50 °C
- Dimensions (H x L x W): 84mm x 217mm x 62mm
- Weight: 1.3 kg
Key Features
- 3D triangulation technology
- Configurable and pre-calibrated
- Integrated red laser illumination (660 nm)
- Working range from 141 mm to 541 mm
- High scan/frame rate of 5,000 3D profiles per second
- IP67 rated enclosure for robust protection
- Multiple interfaces including Ethernet, RS-232, RS-422, and TTL
- Lightweight anodized aluminum housing with PMMA window
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- 3D position determination
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number monitoring and controlling
- Quality control in industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 11 W)
- Durable IP67 rated housing reduces need for frequent replacements
- Supports precise measurements reducing material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3T12S-MR32A8 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
