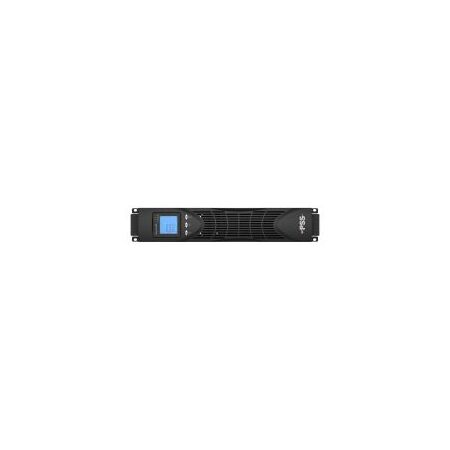

3kVA 2.7kW Online UPS Rack Tower Enduro

BRAND: CABAC
SKU: EN3-RT
$2,342.30 List price: $3,123.10
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Enduro 3kVA 2.7kW online double conversion UPS features rack or tower mounting and extendable run-time via battery modules. Ideal for servers.

Alternatively Known As: Enduro EN3000 UPS, 3000VA Online UPS, 3kVA Rack/Tower UPS, Pure Sinewave Double-Conversion UPS

Technical Specifications
  • Model: EN3000 / EN3-RT
  • Capacity: 3kVA / 2.7kW
  • Topology: Online double conversion
  • Input Voltage: 230V ±20%
  • Input Frequency: 45–65Hz
  • Input Phase: Single phase
  • Input Power Factor: ≥0.98
  • Input Connection: IEC C20 16A
  • Output Voltage: 230VAC +1% / -2%
  • Output Frequency: 50Hz ±0.1Hz in battery mode
  • Output Power Factor: 0.9
  • Waveform: Pure sinewave
  • Total Harmonic Distortion: ≤3% linear load; ≤5% non-linear load
  • Efficiency: ≥89% in normal mode; up to 97% in ECO mode
  • Battery Type: Sealed lead-acid, maintenance-free
  • Standard Battery Configuration: 6 x 12V 9Ah
  • Rated Battery Voltage: 72V
  • Recharge Time: Approximately 5 hours to 90%
  • Output Sockets: 3 x Australian 3-pin sockets, 2 critical and 1 non-critical
  • Communications: USB and RS-232
  • Optional Communications: SNMP and relay card
  • Protection: Resettable circuit breaker, surge protection and emergency power off
  • Operating Temperature: 0–40°C
  • Operating Humidity: 0–95% non-condensing
  • Noise Level: <50dB at 1m
  • Rack Height: 2RU
  • External Battery Modules: Supports up to four EBM units
  • Dimensions (H x L x W): 86.5mm x 600mm x 440mm
  • Weight: 26.8 kg
Key Features
  • Online double-conversion protection for sensitive electronic equipment
  • Pure sinewave output suitable for servers, computers and telecommunications equipment
  • Rack or tower mounting configuration
  • Expandable runtime with up to four external battery modules
  • Interactive LCD display for load, battery, input, output and operating status
  • USB and RS-232 connectivity for monitoring and controlled shutdown
  • Optional SNMP and relay communications
  • Emergency power off function
  • Generator compatible
  • Australian 3-pin output sockets with separate critical and non-critical outlets
Professional Installation Requirements
  • Installation and commissioning should be performed by a suitably qualified electrical or UPS technician. Connect and operate the unit in accordance with the manufacturer’s instructions and applicable Australian electrical installation requirements. Battery replacement and internal servicing must be carried out by qualified personnel.
Applications
  • Server rooms and data centres
  • Network and telecommunications equipment
  • Computer systems and workstations
  • Point-of-sale systems
  • Security and camera surveillance systems
  • Industrial control and monitoring equipment
  • Telephone systems
Standards & Compliance
  • AS 62040.1:2019 – applicable Australian safety standard for uninterruptible power systems
  • AS/NZS 3000:2018 – electrical installation requirements applicable to permanent UPS connections
  • EMC marking listed by the manufacturer as EN 50091-2 and C-Tick/RCM
Environmental Benefits
  • ECO mode can reduce energy consumption during suitable operating conditions
  • High normal-mode efficiency of at least 89% helps reduce operating losses
  • Replaceable sealed lead-acid batteries can extend the usable service life of the UPS
  • Lead-acid batteries should be recycled through an approved battery recycling program at end of life
  • Expandable battery capacity can reduce the need to replace the UPS when longer runtime is required
Warranty Information

Standard PSS Distributors warranty is a 2-year return-to-base warranty from the original purchase date, subject to the published warranty terms and correct installation and operation.

Available Now

Available through ENDURO/PSS Distributors and authorised Australian electrical and technology distributors; contact the distributor for current stock and quotation status.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
