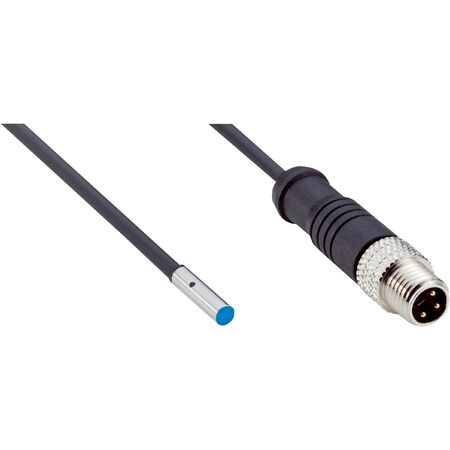

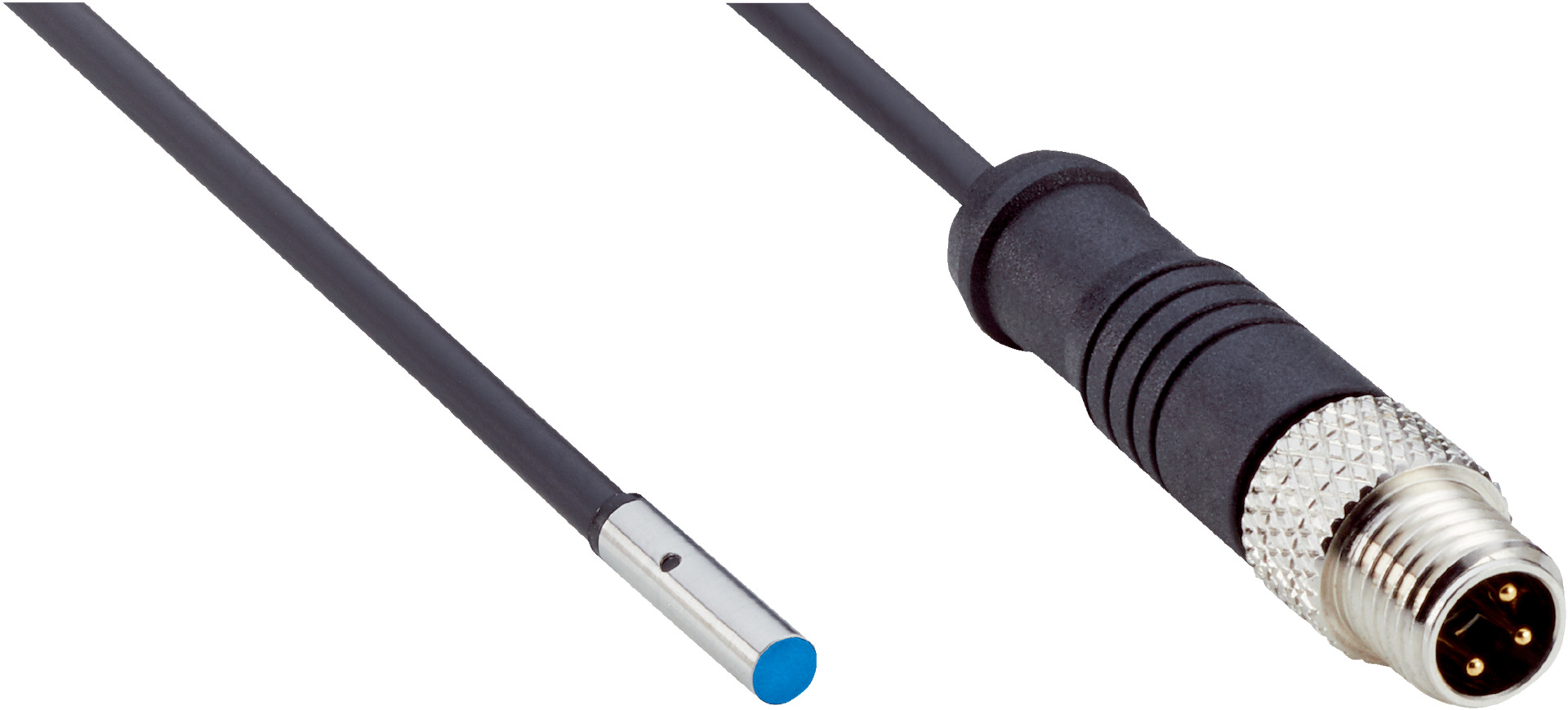

3mm Diameter IO-Link Sensor | Short-Body Proximity | IP67 Rated | High Switching Frequency | by SICK
The 3mm Diameter IO-Link Sensor is designed for precise object detection in industrial automation. With a short-body housing and an IP67 rating, it ensures reliable performance in harsh environments. Ideal for machine safety and control systems, this sensor features a high switching frequency of 4,200 Hz and a flush installation type, making it perfect for factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.5 mm
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- EMC compliant with EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 3mm x 12mm x 3mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 3 mm diameter
- Flush installation type
- Sensing range Sn of 1 mm with safe sensing range Sa of 0.81 mm
- High switching frequency of 4,200 Hz
- PNP switching output with normally open function
- Cable with M8, 3-pin connector, 0.2 m length
- Visual adjustment indicator and IO-Link communication interface
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for precise object detection
- Machine safety and control systems
- Factory automation requiring flush installation sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM03-01BPSVR8K sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
