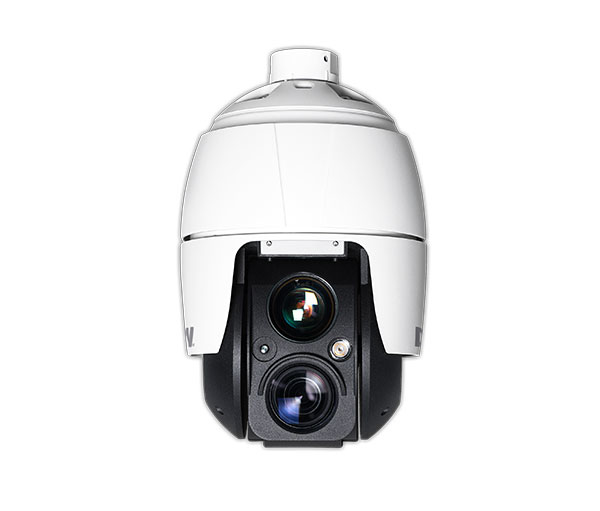

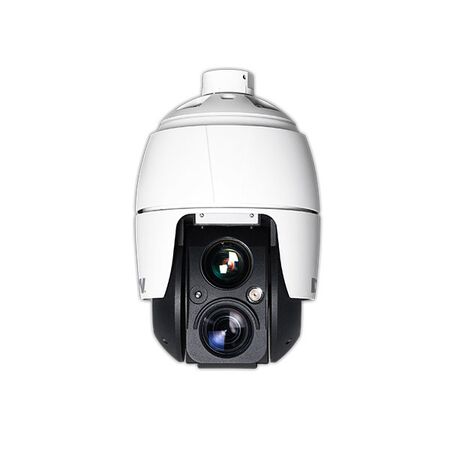

3MP IP PTZ Camera 36X Zoom 350m IR Star-Light Plus IP66 Ness
Ness 3MP IP PTZ camera features 36X, a 350m IR range, Star-Light Plus and IP66. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 3MP PTZ Camera, Digital Watchdog MEGApix 36x PTZ, DWC-MPTZ336XW
Technical Specifications
- Image Sensor: 3MP 1/2.8-inch CMOS
- Maximum Resolution: 2048 x 1536
- Lens: 4.6–165.6mm motorised vari-focal lens with auto-focus
- Optical Zoom: 36x
- Infrared Range: Up to 350m Smart IR
- Minimum Illumination: 0.35 lux colour; 0 lux black and white
- Video Compression: H.265, H.264 and MJPEG
- Frame Rate: Up to 30fps at all resolutions
- Wide Dynamic Range: True WDR, 120dB
- Pan Range: 360° endless
- Tilt Range: -10° to 190°
- Pan/Tilt Speed: Up to 380° per second at preset positions
- Presets: 256
- Storage: Micro SD, SDHC and SDXC card slot; card not included
- Audio: Two-way audio with audio input and output
- Alarm I/O: 4 alarm inputs and 1 relay output
- Network: 10/100Base-T RJ45; ONVIF Profile S
- Power: PoE/UPoE Class 4 or 12V DC; approximately 28W
- Environmental Rating: IP66 dust-tight and water-resistant
- Impact Rating: IK10
- Operating Temperature: -30°C to 55°C
- Housing Material: Aluminium PTZ housing with polycarbonate dome
- Certifications Listed by Manufacturer: CE, FCC and RoHS
- Dimensions (H x L x W): 317.8mm x 201.8mm x 201.8mm
- Weight: 5.1 kg
Key Features
- 3MP imaging with real-time 30fps video
- 36x optical zoom for long-distance identification and monitoring
- 350m Smart IR with intelligent camera synchronisation
- Star-Light Plus technology for colour imaging in near-total darkness
- True WDR and Smart DNR 3D digital noise reduction
- 360° endless pan and -10° to 190° tilt range
- 256 preset positions, eight patterns and eight tours
- Programmable privacy zones and motion detection
- Built-in web server, Micro SD recording and ONVIF compatibility
- IP66 weather-resistant and IK10 impact-rated housing
- PoE injector included; mounting brackets sold separately
Professional Installation Requirements
- Installation should be completed by a qualified CCTV or security technician. The camera requires suitable PoE/UPoE or 12V DC power, network configuration and a separately purchased wall, ceiling, parapet or pole mounting arrangement.
Applications
- Commercial and industrial CCTV surveillance
- Large-site perimeter monitoring
- Car parks, warehouses and transport facilities
- Residential estate and campus security
- Long-distance observation requiring optical zoom and extended infrared illumination
Standards & Compliance
- AS/NZS 62368.1 is the applicable Australian/New Zealand safety standard framework for audio, video and information and communication technology equipment, including outdoor ICT equipment; product-specific Australian declaration or RCM documentation was not located. ([standards.globalspec.com](https://standards.globalspec.com/standards/detail?docId=14536432&utm_source=openai))
Environmental Benefits
- RoHS-listed construction supports restriction of hazardous substances in the product
- Aluminium and polycarbonate housing materials are durable and can support longer service life
- PoE power delivery can reduce separate power cabling and associated installation materials
- Extended PTZ coverage can reduce the number of fixed cameras required for some installations
Warranty Information
Ness Corporation lists Digital Watchdog cameras and recorders with a 3-year warranty from date of purchase. ([ness.com.au](https://ness.com.au/product-warranty))
Available Now
Available through Ness Corporation and authorised Australian security and electrical distributors; live stock status should be confirmed before ordering.
