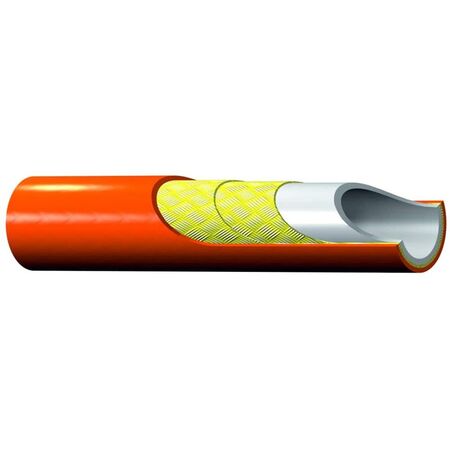

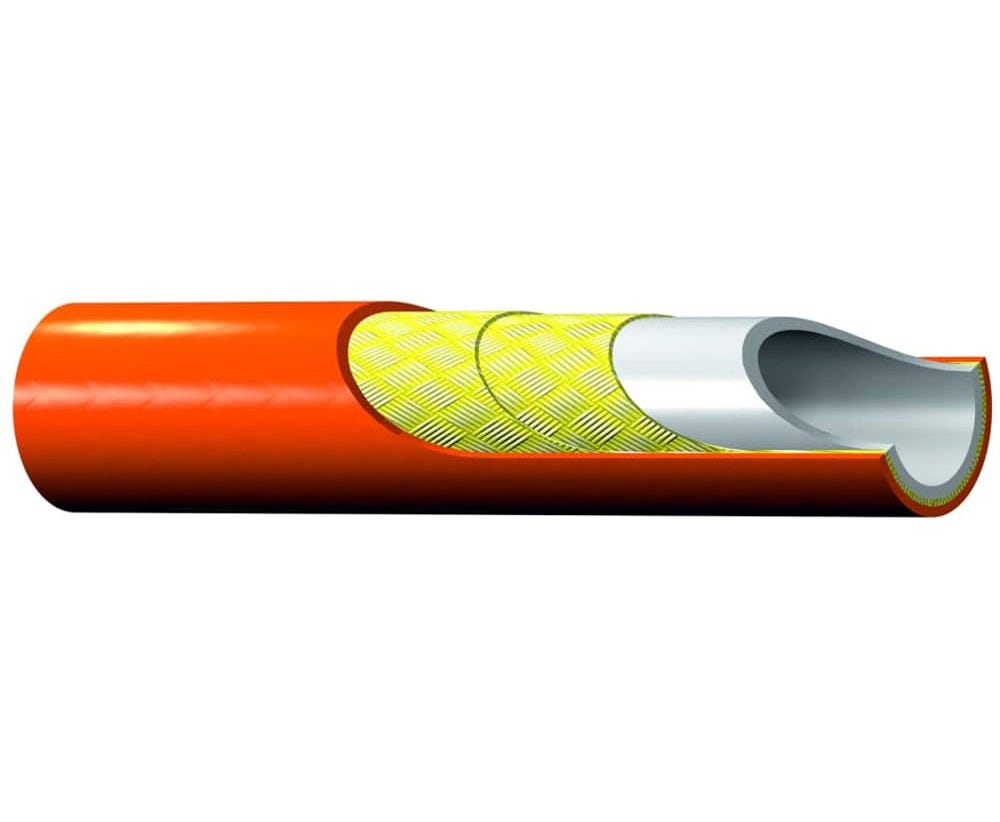

3Mt Hose Assembly 700BAR NC 4:1 M/F Couplers | High Pressure | Electrically Non-Conductive | @Each of 1 | by Cabac
The 3Mt Hose Assembly 700BAR NC 4:1 M/F Couplers is designed for high-pressure hydraulic applications, featuring a working pressure of up to 69 MPa (10000 psi) and compatibility with 8X series fittings. Ideal for industrial and construction machinery, this durable and electrically non-conductive hose ensures safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3Mt Hose Assembly 700BAR NC 4:1 M/F Couplers | High Pressure | Electrically Non-Conductive | @Each of 1 | by Cabac
Brand: Cabac
SKU: 2022N-04V15-10K-3M
Alternatively Known As: High Pressure Hydraulic Hose Assembly, 700BAR Hydraulic Hose, 3 Meter Hydraulic Hose with Couplers
Technical Specifications
- Working pressure: 69 MPa (10000 psi, 690 bar)
- Hose inner diameter: 6.4 mm
- Hose outer diameter: 13.8 mm
- Minimum bend radius: 100 mm
- Operating temperature range: -40°F to 131°F (-40°C to 55°C)
- Does not include fittings; compatible with 8X series fittings
- Dimensions (H x L x W): 30mm x 3000mm x 138mm
- Weight: 1.2 kg
Key Features
- High pressure hose electrically non-conductive
- Working pressure up to 69 MPa (10000 psi, 690 bar)
- Compatible with 8X series fittings
- Wide operating temperature range from -40°F to 131°F (approx. -40°C to 55°C)
Professional Installation Requirements
- Installation by a qualified hydraulic technician is recommended to ensure safety and compliance with pressure ratings.
Applications
- Hydraulic tools and equipment requiring high-pressure hose assemblies
- Industrial and construction machinery hydraulic systems
- Maintenance and repair of hydraulic equipment
Standards & Compliance
- Complies with AS/NZS 4833 for hydraulic hose assemblies and fittings
Environmental Benefits
- Electrically non-conductive hose reduces risk of electrical hazards
- Durable construction reduces frequency of replacements and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac 3Mt Hose Assembly 700BAR NC 4:1 M/F Couplers is available for immediate purchase, ideal for hydraulic tool and equipment applications.
