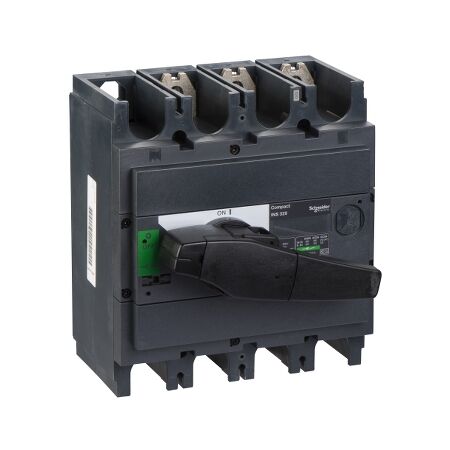

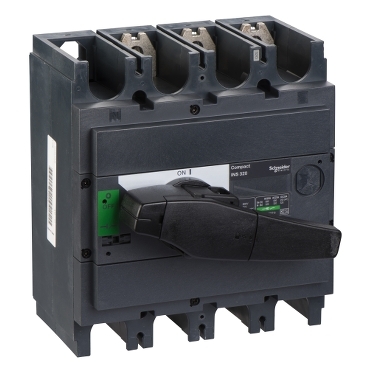

3P 320A Switch Disconnector | Compact Design | Black Rotary Handle | High Breaking Capacity | @Pack of 1 | by Clipsal
The 3P 320A Switch Disconnector is designed for reliable circuit isolation in industrial and commercial applications. With a compact design and a black rotary handle, it ensures safe operation and easy integration into electrical panels. Rated for 320A and compliant with IEC 60947-3, this switch disconnector enhances safety with its high breaking capacity, making it ideal for main and sub-main distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P 320A Switch Disconnector | Compact Design | Black Rotary Handle | High Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH31108
Alternatively Known As: 320A Switch Disconnector, 3 Pole Isolator, Compact Switch Disconnector, Main Switch 320A, Clipsal SCH31108
Technical Specifications
- Rated operational current: 320A
- Number of poles: 3
- Switch disconnector type: Compact INS320
- Handle type: Black rotary handle
- Standard version
- Rated insulation voltage: 690V AC
- Rated impulse withstand voltage: 8kV
- Utilization category: AC-23A
- Conforms to IEC 60947-3
- Dimensions (H x L x W): 200mm x 120mm x 140mm
- Weight: 2.5 kg
Key Features
- Three-pole switch disconnector for reliable circuit isolation
- Rated for 320A current
- Standard version with black rotary handle for safe operation
- Compact design for easy integration into panels
- High breaking capacity for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial electrical panels
- Commercial switchboards
- Main and sub-main distribution boards
- Motor control centers
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables safe isolation of electrical circuits, supporting maintenance and reducing risk of electrical hazards.
- Durable construction ensures long service life, minimizing replacement waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal INS320 3P 320A Switch Disconnector (SCH31108) is available for immediate purchase. Ideal for industrial and commercial electrical distribution applications.
