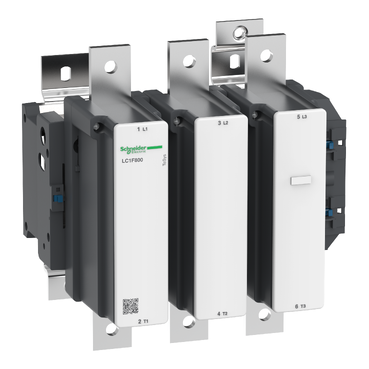

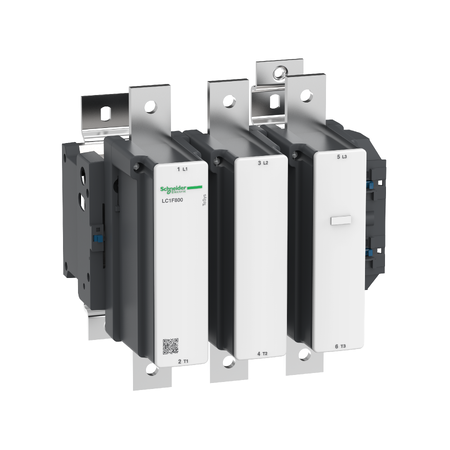

3P AC3 Contactor LC1F800FW | 800A Rated | 440V Operation | by Clipsal
The 3P AC3 Contactor LC1F800FW is designed for high power applications, rated for 800A at 440V. Ideal for industrial motor control and heavy-duty machinery switching, this robust TeSys F series contactor ensures reliable performance in demanding environments. With dual coil operation for both AC and DC, it’s perfect for HVAC systems and power distribution panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P AC3 Contactor LC1F800FW | 800A Rated | 440V Operation | by Clipsal
Brand: Clipsal
SKU: SCHLC1F800FW
Alternatively Known As: LC1F800FW, TeSys F Contactor, Schneider 3P AC3 Contactor, 800A Power Contactor, Industrial Motor Contactor
Technical Specifications
- Type: Contactor
- Series: TeSys F
- Poles: 3P (3NO)
- Utilization Category: AC-3
- Rated Operational Voltage: up to 440V
- Rated Operational Current: 800A
- Coil Voltage: 110–115V AC / 110–125V DC
- Conforms to IEC 60947-4-1
- Mechanical Durability: 5 million cycles
- Electrical Durability: 1 million cycles (AC-3)
- Dimensions (H x L x W): 340mm x 220mm x 320mm
- Weight: 18 kg
Key Features
- High power 3-pole contactor for AC-3 applications up to 800A at 440V
- Suitable for both AC and DC coil operation (110–115V AC / 110–125V DC)
- Robust TeSys F series design for demanding industrial environments
- 3 normally open (3NO) main contacts
- Reliable performance for frequent switching operations
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Heavy-duty machinery switching
- Pumping stations
- HVAC systems
- Power distribution panels
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient energy management in industrial systems
- Supports reliable operation, reducing downtime and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Schneider Electric TeSys LC1F800FW 3P AC3 800A Contactor is available for immediate purchase. Ideal for industrial motor control and heavy-duty power switching applications.
