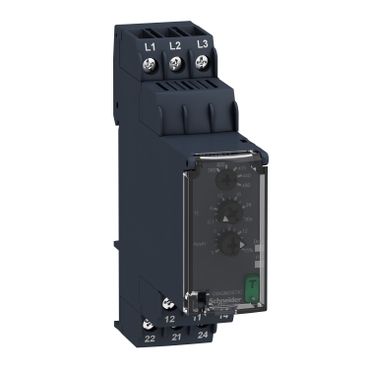

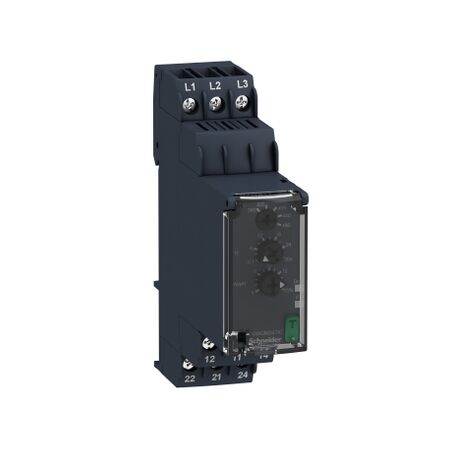

3P Asymmetry Control Relay RM22-TA | Adjustable Asymmetry Threshold | LED Status Indicators | DIN Rail Mount | @Pack of 1 | by Clipsal
The 3P Asymmetry Control Relay RM22-TA is designed for reliable phase monitoring in industrial applications. With an adjustable asymmetry threshold of 5-15% and LED status indicators, it ensures optimal performance for motors, pumps, and HVAC systems. Built for durability and quick response, this relay is essential for protecting electrical panels and extending machinery lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Asymmetry Control Relay RM22-TA | Adjustable Asymmetry Threshold | LED Status Indicators | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRM22TA33
Alternatively Known As: Phase Failure Relay, Phase Sequence Relay, Phase Monitoring Relay, RM22TA33, Clipsal Phase Asymmetry Relay
Technical Specifications
- Supply voltage: 208-480V AC (3-phase)
- Frequency: 50/60Hz
- Asymmetry threshold: Adjustable 5-15%
- Output: 1 C/O relay, 8A/250V AC
- Mounting: DIN rail
- LED status indicators
- Response time: <200ms
- Operating temperature: -20°C to +60°C
- IP20 protection (housing)
- Dimensions (H x L x W): 90mm x 70mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Monitors phase sequence, phase loss, and phase asymmetry
- Adjustable asymmetry threshold (5-15%)
- LED status indicators for easy diagnostics
- Compact DIN rail mounting
- Wide supply voltage range (208-480V AC)
- 1 changeover relay output (8A/250V AC)
- Fast response time for critical protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial motor protection
- Pumps and compressors
- HVAC systems
- Conveyor systems
- Electrical panels requiring phase monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents equipment damage, reducing waste and extending machinery lifespan
- Improves energy efficiency by ensuring motors operate under optimal conditions
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Asymmetry Control Relay RM22-TA (SCHRM22TA33) is available for immediate purchase. Ideal for industrial and commercial electrical panels requiring reliable phase monitoring and protection.
