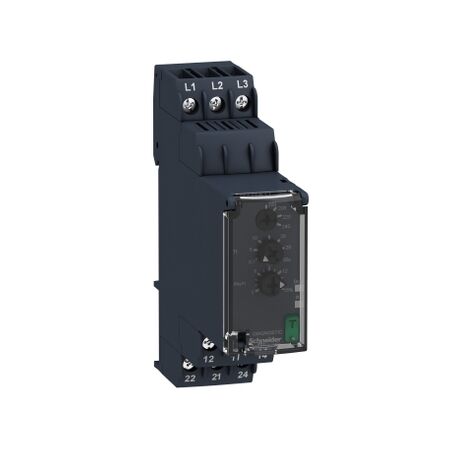

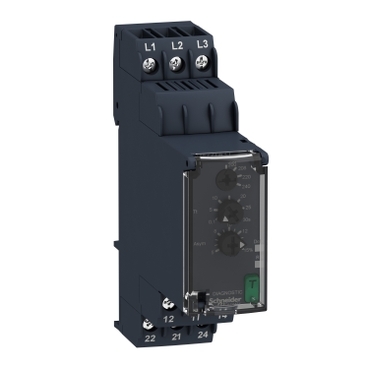

3P Asymmetry Control Relay RM22-TA | 200–240V AC | Adjustable 5–15% Threshold | LED Status Indicators | @Pack of 1 | by Clipsal
The 3P Asymmetry Control Relay RM22-TA is designed for monitoring three-phase voltage asymmetry and phase failure, making it ideal for industrial motor protection and HVAC systems. With an adjustable asymmetry threshold of 5–15% and two changeover relay outputs, this relay ensures optimal operation and energy efficiency, while the LED status indicators provide easy diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Asymmetry Control Relay RM22-TA | 200–240V AC | Adjustable 5–15% Threshold | LED Status Indicators | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRM22TA31
Alternatively Known As: Three-phase asymmetry relay, phase failure relay, voltage monitoring relay, RM22-TA relay, SCHRM22TA31
Technical Specifications
- Supply voltage: 200–240V AC
- Frequency: 50/60 Hz
- Asymmetry threshold: Adjustable 5–15%
- Relay outputs: 2 C/O (SPDT)
- Mounting: DIN rail
- Status indication: LED
- Reset: Automatic
- Operating temperature: -20°C to +60°C
- IP20 protection (housing)
- Dimensions (H x L x W): 78mm x 100mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Monitors three-phase voltage asymmetry and phase failure
- Adjustable asymmetry threshold (5-15%)
- 200–240V AC supply voltage
- 2 changeover (C/O) relay outputs
- LED status indicators for easy diagnostics
- Compact DIN rail mounting
- Automatic reset function
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial motor protection
- Pumps and compressors
- HVAC systems
- Three-phase equipment monitoring
- Automation panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents equipment damage, reducing waste and extending equipment lifespan
- Improves energy efficiency by ensuring optimal operation of three-phase systems
Warranty Information
18 months warranty from date of purchase against manufacturing defects.
Available Now
The Clipsal 3P Asymmetry Control Relay RM22-TA (SCHRM22TA31) is available for immediate purchase. Ideal for industrial and commercial applications requiring reliable three-phase voltage monitoring and protection.
