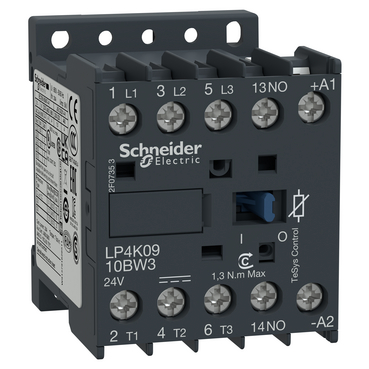

3P Contactor 4.0KW 24VDC | Low Consumption | High Endurance | Compact Design | @Pack of 1 | by Clipsal
The 3P Contactor 4.0KW 24VDC is designed for reliable motor control and power switching in industrial applications. With a low consumption coil for energy efficiency and high electrical endurance, this compact contactor is perfect for HVAC systems, lighting control, and pumping stations. Built to last with a mechanical endurance of 10 million cycles, it ensures dependable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Contactor 4.0KW 24VDC | Low Consumption | High Endurance | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLP4K0910BW3
Alternatively Known As: 3 Pole Contactor, 4kW Contactor, 24VDC Contactor, Industrial Contactor, Motor Contactor, SCHLP4K0910BW3
Technical Specifications
- Number of Poles: 3
- Rated Operational Power: 4.0kW (AC3, 400V)
- Coil Voltage: 24VDC
- Rated Operational Current: 9A (AC3, 400V)
- Auxiliary Contacts: 1 NO
- Electrical Endurance: 1,000,000 cycles
- Mechanical Endurance: 10,000,000 cycles
- Mounting: DIN rail or screw
- Terminal Capacity: 1.5-4mm²
- Operating Temperature: -25°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.35 kg
Key Features
- 3-pole contactor for reliable switching
- Rated operational power: 4.0kW (AC3, 400V)
- Low consumption 24VDC coil for energy efficiency
- Compact design for easy panel integration
- High electrical and mechanical endurance
- Screw terminal connections for secure wiring
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Motor control in industrial automation
- Lighting control circuits
- HVAC systems
- Pumping stations
- General power switching in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Low consumption coil reduces energy usage
- Long operational life minimizes replacement waste
- RoHS compliant materials for reduced environmental impact
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Contactor 4.0KW 24VDC Low Consumption (SCHLP4K0910BW3) is available for immediate purchase. Ideal for industrial and commercial motor control and power switching applications.
