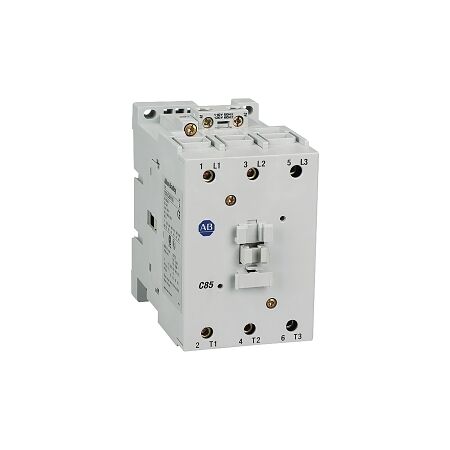

3P Contactor 45kW 120VAC Coil IP20 Protection NHP

BRAND: Allen-Bradley
SKU: 100C85P00
$1,137.70 List price: $1,417.80
+ −
30 Days Return Electricians Unlock Trade Access
NHP Contactor AC Coil Protection features 85A, 45kW and 690V. 3P contactor rated for 45kW power. 120 VAC coil for control voltage.
Technical Specifications
  • Rated operation current at AC 3,400 V: 85 A
  • Rated operation power at AC 3,400 V: 45 kW
  • Max rated operation voltage: 690 V
  • Control supply voltage at AC 50 Hz: 120 V
  • Power consumption AC coil pickup: 235 VA
  • Power consumption AC coil hold-in: 19.6 VA
  • Type of electrical connection: Screw connection
  • Mounting method: Screw mounting
  • Dimensions (H x L x W): 122mm x 125.5mm x 72mm
  • Weight: 1.45 kg
Key Features
  • 3 Pole contactor rated for 45 kW power
  • 120 VAC coil for control voltage
  • IP20 protection rating
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and automation systems
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 100C Contactor 45kW 3Pole 120VAC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.

Non-Returnable & Non-Cancellable

100C85P00-AU-Contactor-45kW-3-Pole-Datasheet.pdf (100C85P00-AU-Contactor-45kW-3-Pole-Datasheet.pdf, 227 Kb) [Download]
