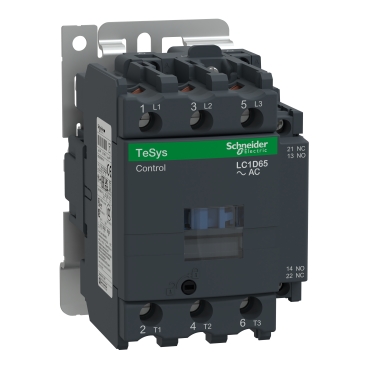

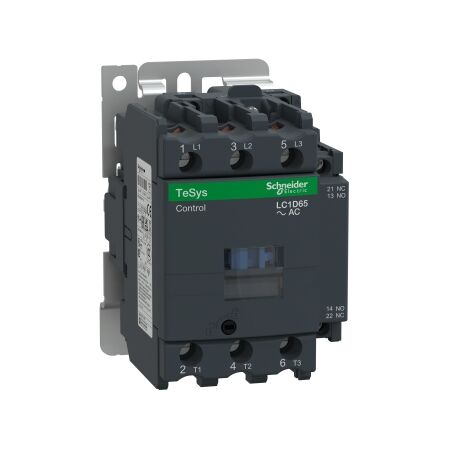

3P Contactor 65A AC3 | 30kW Power Rating | 1NO & 1NC Auxiliary Contacts | by Clipsal
The 3P Contactor 65A AC3 is designed for reliable motor control and power switching in industrial applications. With a robust 30kW power rating and 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, it ensures efficient operation in HVAC systems, pumps, and compressors. Built for durability with high electrical and mechanical endurance, this contactor is perfect for licensed electricians looking to enhance energy management in commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Contactor 65A AC3 | 30kW Power Rating | 1NO & 1NC Auxiliary Contacts | by Clipsal
Brand: Clipsal
SKU: SCHLC1D65G7
Alternatively Known As: 3 Pole Contactor 65A, 65A AC3 Contactor, 30kW Motor Contactor, LC1D65G7, Schneider Electric Contactor 65A
Technical Specifications
- Number of Poles: 3
- Rated Operational Current (AC-3): 65A
- Power Rating: 30kW at 400V
- Auxiliary Contacts: 1 NO + 1 NC
- Control Voltage: 220-240V AC 50/60Hz
- Electrical Endurance: 1.2 million cycles
- Mechanical Endurance: 10 million cycles
- Conforms to IEC 60947-4-1
- Operating Temperature: -5°C to +60°C
- Mounting: DIN rail or screw fixing
- Dimensions (H x L x W): 120mm x 130mm x 85mm
- Weight: 0.7 kg
Key Features
- Three-pole contactor for reliable switching
- Rated operational current: 65A (AC-3)
- Power rating: 30kW at 400V
- Includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact
- Compact design for easy panel integration
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control in industrial automation
- Switching and control of lighting circuits
- HVAC systems
- Pumps and compressors
- General power switching in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy management in industrial systems
- Supports automation for reduced manual intervention and energy waste
- Durable design reduces replacement frequency and electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Contactor 65A AC3 30kW SCHLC1D65G7 is available for immediate purchase. Ideal for industrial and commercial motor control and power switching applications.
