Trade Discount 20%

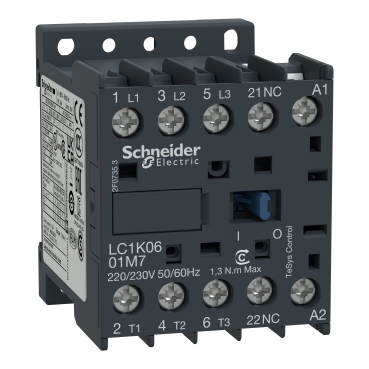

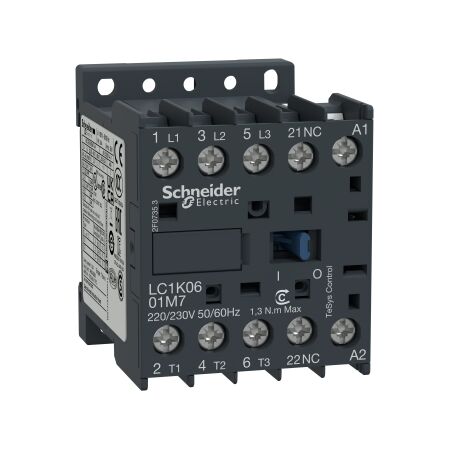

3P Contactor 6A AC3 2.2kW | 1NC Auxiliary Contact | Compact Design | @Pack of 1 | by Clipsal
The 3P Contactor 6A AC3 2.2kW is designed for reliable motor control and general switching applications. Featuring a 1NC auxiliary contact and a compact design, this contactor is perfect for industrial automation, HVAC systems, and lighting circuits. With a high electrical endurance and energy-efficient coil, it ensures long-lasting performance and reduced power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Contactor 6A AC3 2.2kW | 1NC Auxiliary Contact | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1K0601E7
Alternatively Known As: TeSys K Contactor, 3 Pole Contactor 6A, Motor Contactor 2.2kW, SCHLC1K0601E7, Clipsal Contactor 1NC, Schneider LC1K0601E7
Technical Specifications
- Number of Poles: 3
- AC-3 Rated Operational Current: 6A (at 440V)
- AC-3 Rated Power: 2.2kW (at 400/415V)
- Auxiliary Contacts: 1 NC
- Control Voltage: 48V AC (50/60Hz)
- Mechanical Durability: 10 million operations
- Electrical Durability: 1 million operations (AC-3)
- Mounting: DIN rail or screw
- Standards: IEC 60947-4-1, EN 60947-4-1
- Operating Temperature: -20°C to +60°C
- Dimensions (H x L x W): 58mm x 60mm x 45mm
- Weight: 0.2 kg
Key Features
- 3-pole contactor for reliable switching
- AC-3 rated for up to 2.2kW (6A) at 440V
- 1 normally closed (NC) auxiliary contact
- 48V AC coil for control circuit compatibility
- Compact TeSys K series design
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control in industrial automation
- Lighting circuits
- HVAC systems
- Pumps and fans
- General switching of electrical loads
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Energy-efficient coil reduces power consumption
- Long operational life minimizes replacement waste
- RoHS compliant materials for reduced environmental impact
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Contactor 6A AC3 2.2KW 1NC (SCHLC1K0601E7) is available for immediate purchase. Ideal for industrial motor control, lighting, and general switching applications.
