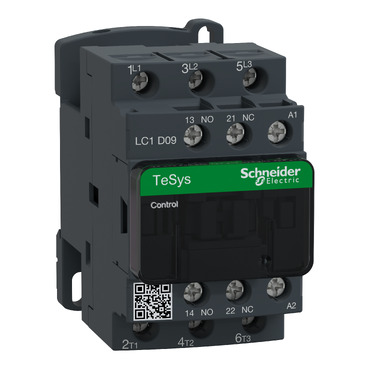

3P Contactor 9A AC3 4kW | 120V Coil | 1NO & 1NC Auxiliary Contacts | by Clipsal
The 3P Contactor 9A AC3 4kW is designed for reliable motor control and power switching in industrial applications. With a 120V AC coil and equipped with 1 normally open and 1 normally closed auxiliary contact, it ensures versatile control for lighting, HVAC systems, and more. Built for durability with high electrical and mechanical endurance, this contactor is perfect for commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Contactor 9A AC3 4kW | 120V Coil | 1NO & 1NC Auxiliary Contacts | by Clipsal
Brand: Clipsal
SKU: SCHLC1D09G7
Alternatively Known As: Clipsal LC1D09G7, 3 Pole Contactor 9A, Schneider Electric LC1D09G7, 4kW Contactor, Industrial Contactor 120V Coil
Technical Specifications
- Number of Poles: 3
- Rated Operational Current (AC-3): 9A
- Maximum Power: 4kW at 400V
- Auxiliary Contacts: 1 NO + 1 NC
- Coil Voltage: 120V AC 50/60Hz
- Conforms to IEC 60947-4-1
- Electrical Life: 1,000,000 operations
- Mechanical Life: 10,000,000 operations
- Mounting: DIN rail or screw
- Operating Temperature: -5°C to +60°C
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.35 kg
Key Features
- Three-pole contactor for reliable switching
- Rated operational current: 9A (AC-3)
- Maximum power: 4kW at 400V
- Equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact
- 120V AC coil voltage for versatile control applications
- Compact design for easy panel integration
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control in industrial automation
- Lighting control circuits
- HVAC systems
- Pumps and compressors
- General power switching in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Energy-efficient operation reduces power consumption in control circuits.
- Durable design minimizes replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Contactor 9A AC3 4kW 1NO 1NC 120V Coil (SCHLC1D09G7) is available for immediate purchase. Ideal for industrial and commercial motor control and power switching applications.
