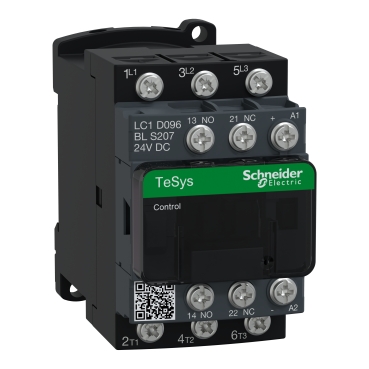

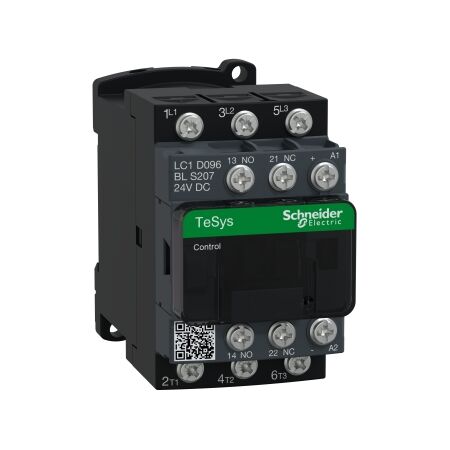

3P Contactor 9A AC3 4kW | 24V DC Coil | 1NO & 1NC Contacts | @Pack of 1 | by Clipsal
The 3P Contactor 9A AC3 4kW is designed for reliable motor control in industrial automation, featuring a 24V DC coil and 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. With screw terminal connections for secure wiring, this compact contactor is perfect for switching lighting circuits and controlling heating and ventilation systems in commercial and industrial electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Contactor 9A AC3 4kW | 24V DC Coil | 1NO & 1NC Contacts | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1D096BLS207
Alternatively Known As: 3 Pole Contactor 9A, 4kW Contactor, 24VDC Industrial Contactor, LC1D096BLS207, Schneider Electric Contactor
Technical Specifications
- Rated operational current: 9A (AC-3)
- Rated operational power: 4kW (400V AC-3)
- Coil voltage: 24V DC
- Auxiliary contacts: 1 NO + 1 NC
- Terminal type: Lug (screw terminals)
- Utilization category: AC-3
- Conforms to IEC 60947-4-1
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.35 kg
Key Features
- Three-pole contactor rated at 9A AC-3 and 4kW
- Equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact
- 24V DC coil voltage for reliable operation
- Screw terminal (lug) connections for secure wiring
- Compact design for easy integration into control panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Motor control in industrial automation
- Switching of lighting circuits
- Control of heating and ventilation systems
- Suitable for use in commercial and industrial electrical panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient coil operation reduces power consumption
- Durable construction extends product lifespan, minimizing replacement waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Contactor 9A AC3 4kW 1NO 1NC 24VDC LC LUG is available for immediate purchase. Ideal for industrial motor control and automation applications.
