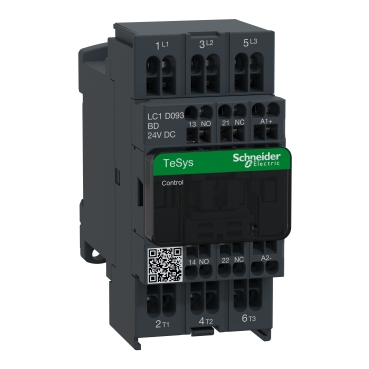

3P Contactor 9A AC3 4kW 24VDC Coil Spring | Spring Clamp Terminals | High Endurance | by Clipsal
The 3P Contactor 9A AC3 4kW 24VDC Coil Spring is designed for reliable motor control in industrial automation. With a rated operational current of 9A and a maximum motor power of 4kW, it features spring clamp terminals for secure wiring and high electrical endurance. Ideal for HVAC systems and general power switching, this contactor ensures efficient operation and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Contactor 9A AC3 4kW 24VDC Coil Spring | Spring Clamp Terminals | High Endurance | by Clipsal
Brand: Clipsal
SKU: SCHLC1D093BD
Alternatively Known As: 3 Pole Contactor 9A, 4kW Contactor, 24VDC Coil Contactor, LC1D093BD, Schneider Contactor 9A, Industrial Motor Contactor
Technical Specifications
- Number of Poles: 3
- Rated Operational Current (AC-3): 9A
- Maximum Motor Power: 4kW (400V AC-3)
- Coil Voltage: 24V DC
- Control Circuit Type: DC
- Terminal Type: Spring clamp
- Electrical Endurance: 1,000,000 cycles
- Mechanical Endurance: 10,000,000 cycles
- Standards: IEC 60947-4-1
- Mounting: DIN rail or panel mount
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.35 kg
Key Features
- 3-pole contactor for reliable switching
- Rated operational current: 9A (AC-3)
- Maximum motor power: 4kW at 400V
- 24V DC coil for low voltage control
- Spring clamp terminals for secure and fast wiring
- Compact design for easy panel integration
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control in industrial automation
- Lighting control circuits
- HVAC systems
- Pumping stations
- General power switching in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient coil operation reduces power consumption.
- Long mechanical life minimizes replacement frequency and waste.
- RoHS compliant materials for reduced environmental impact.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Contactor 9A AC3 4kW 24VDC Coil Spring (SCHLC1D093BD) is available for immediate purchase. Ideal for industrial motor control and power switching applications.
