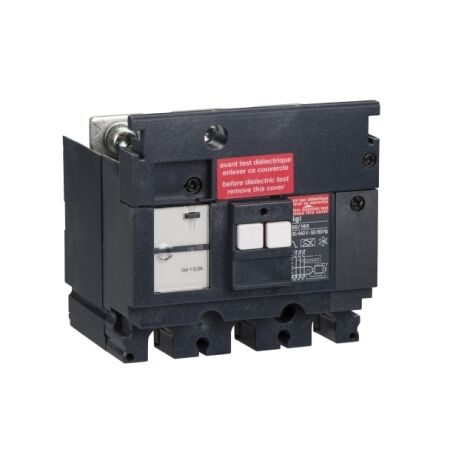

3P Earth Leakage Module | 200-440V AC | 0.3A Sensitivity | DIN Rail Mount | @Pack of 1 | by Clipsal
The 3P Earth Leakage Module is designed for three-phase circuits, providing reliable protection with a rated operational voltage of 200-440V AC and a sensitivity of 0.3A. Ideal for industrial and commercial switchboards, this module ensures enhanced safety and compliance with AS/NZS standards, making it a must-have for any electrical installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Earth Leakage Module | 200-440V AC | 0.3A Sensitivity | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429212
Alternatively Known As: Earth Leakage Module, VIGI ME Earth Leakage Relay, Clipsal 3P VIGI, Residual Current Device 3 Phase, Clipsal SCHLV429212
Technical Specifications
- Number of Poles: 3P
- Rated Operational Voltage: 200-440V AC
- Rated Sensitivity: 0.3A (300mA)
- Mounting: DIN rail
- Compatible with: ME circuit breakers
- Tripping Class: AC
- Frequency: 50/60Hz
- Dimensions (H x L x W): 90mm x 75mm x 54mm
- Weight: 0.35 kg
Key Features
- Earth leakage protection for three-phase circuits
- Rated operational voltage: 200-440V AC
- Sensitivity: 0.3A (300mA)
- Compatible with ME circuit breakers
- Quick and easy installation
- Reliable tripping mechanism for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Industrial switchboards
- Commercial electrical panels
- Protection of three-phase circuits
- Distribution boards in factories and warehouses
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards.
- Supports compliance with modern safety standards, promoting safer work environments.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal VIGI ME 3P 200-440V AC 0.3A Earth Leakage Module (SCHLV429212) is available for immediate purchase. Ideal for industrial and commercial switchboards requiring reliable earth leakage protection.
