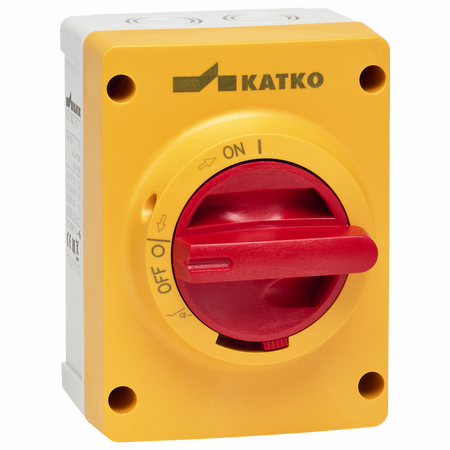

3P Enclosed Isolators IP66 Polycarbonate Load Break Red Katko

BRAND: Katko
SKU: KEM325YRM2
$99.70 List price: $124.30
+ −
30 Days Return Electricians Unlock Trade Access
Katko 3 Pole Enclosed Isolators IP66 Rated Polycarbonate Load Break Switch features rated Current AC-21 400 415V: 40A, rated Current AC-21 690V: 40A.

Product Name/Title: 3 Pole Enclosed Isolators | IP66 Rated Polycarbonate | Load Break Switch | Yellow/Red | by Katko

Brand: Katko

SKU: KEM325YRM2

Alternatively Known As: 3 Pole Load Break Switch, 3 Pole Electrical Isolator, Industrial Enclosed Isolator Switch

Technical Specifications
  • Rated Current AC-21 400/415 V: 40 A
  • Rated Current AC-21 690 V: 40 A
  • Rated Current AC-22 400/415 V: 25 A
  • Rated Current AC-22 690 V: 25 A
  • Rated Current AC-23 400/415 V: 25 A / 11 kW
  • Rated Current AC-23 690 V: 25 A / 22 kW
  • Cable Area to Switch Terminal (Cu only): 1.5-16 mm²
  • Enclosure Type: Polycarbonate M2
  • IP Rating: IP66
  • Number of Poles: 3
  • Operation: Front-operated
  • Switch Type: Load Break Switch
  • Color: Yellow / Red
  • Dimensions (H x L x W): 180mm x 90mm x 120mm
  • Weight: 0.4 kg
Key Features
  • IP66 rated polycarbonate enclosure for dust and water protection
  • Self-extinguishing material for enhanced safety
  • Wide operating temperature range
  • Padlockable with 3 locks for secure isolation
  • Door interlock with defeat mechanism
  • Excellent insulating properties
  • Good UV resistance and chemical resistance
  • Tested according to IEC 60947-3 standards
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
  • Industrial electrical isolation
  • Electrical switchgear panels
  • Machinery and equipment safety isolation
  • Commercial and industrial electrical installations
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable polycarbonate enclosure reduces need for frequent replacements
  • High resistance to UV and chemicals extends product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Katko warranty terms for details.

Available Now

The Katko 3 Pole Enclosed Isolators KEM325YRM2 is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.
