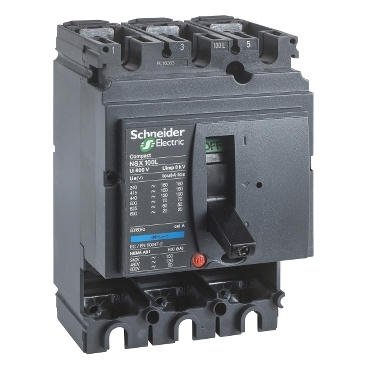

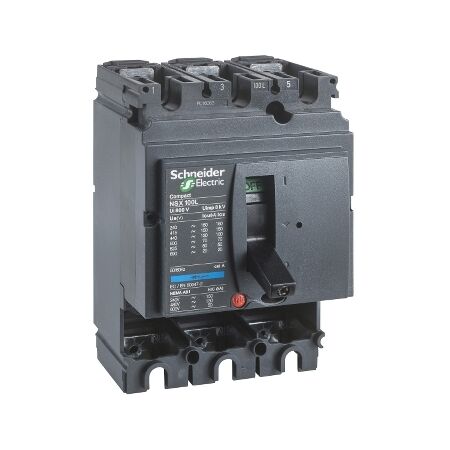

3P NSX100B MCCB Frame Without Trip Unit | Up to 100A | Modular Design | by Clipsal
The 3P NSX100B MCCB Frame Without Trip Unit is designed for reliable circuit protection in commercial and industrial applications. Rated for up to 100A, this robust frame features a modular design for easy integration of trip units, making it ideal for switchboards and electrical distribution panels. Ensure compliance with IEC standards while minimizing downtime with this durable solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P NSX100B MCCB Frame Without Trip Unit | Up to 100A | Modular Design | by Clipsal
Brand: Clipsal
SKU: SCHLV429014
Alternatively Known As: NSX100B MCCB Frame, 3 Pole MCCB Without Trip Unit, Schneider NSX100B, SCHLV429014, MCCB Shell Only
Technical Specifications
- Type: 3-pole MCCB frame (without trip unit)
- Rated current: Up to 100A (trip unit dependent)
- Breaking capacity: Dependent on installed trip unit
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Material: High-strength molded case
- Compatible trip units: NSX100B series
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- 3-pole MCCB frame without trip unit
- Rated for up to 100A
- Modular design for easy integration of trip units
- Robust construction for reliable circuit protection
- Suitable for a wide range of electrical distribution applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial and industrial electrical distribution panels
- Main and sub-main circuit protection
- Switchboards in factories, warehouses, and large buildings
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Supports efficient energy management by enabling reliable circuit protection and minimizing downtime.
- Durable design reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P NSX100B Without TRIP Unit C (SCHLV429014) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring modular circuit protection.
