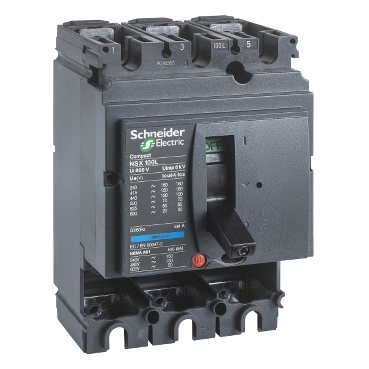

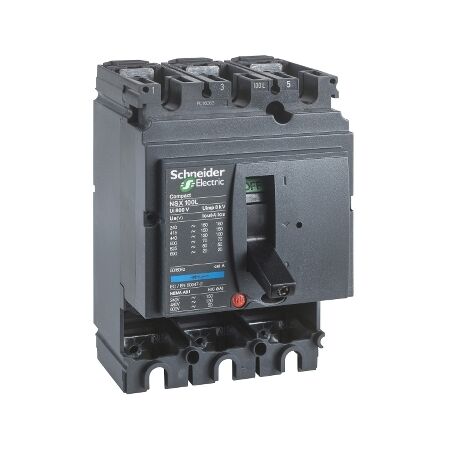

3P NSX100S MCCB Frame | 100A Rated | 100kA Breaking Capacity | by Clipsal
The 3P NSX100S MCCB frame is designed for robust electrical distribution, rated for 100A with a high breaking capacity of 100kA at 415VAC. Ideal for commercial and industrial applications, this circuit breaker frame allows for custom protection configurations as it is supplied without a trip unit. Ensure reliable performance in demanding environments with this Clipsal product.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P NSX100S MCCB Frame | 100A Rated | 100kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV429018
Alternatively Known As: NSX100S circuit breaker frame, 3 pole MCCB, ComPact NSX100S 100A, LV429018, Schneider NSX100S, 3P MCCB without trip unit
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB) frame
- Poles: 3
- Rated Current: 100A
- Breaking Capacity: 100kA at 415VAC 50/60Hz
- Trip Unit: Not included (to be ordered separately)
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- 3 pole (3P) basic circuit breaker frame
- ComPact NSX100S series
- Rated for 100A
- High breaking capacity: 100kA at 415VAC 50/60Hz
- Supplied without trip unit for custom protection configuration
- Robust and reliable design for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations. Trip unit must be selected and installed separately.
Applications
- Commercial and industrial electrical distribution systems
- Switchboards and panelboards
- Main and sub-main circuit protection
- Infrastructure and facility management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient and safe electrical distribution, reducing risk of electrical fires and system failures.
- Supports modular upgrades, minimizing waste by allowing replacement of only necessary components.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P NSX100S Without Trip Unit C (SCHLV429018) is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
