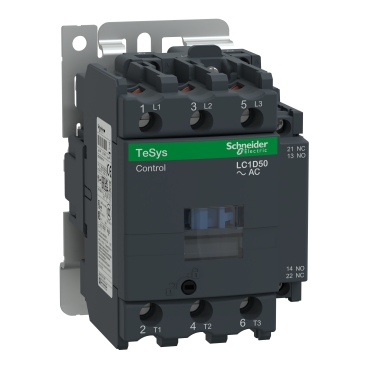

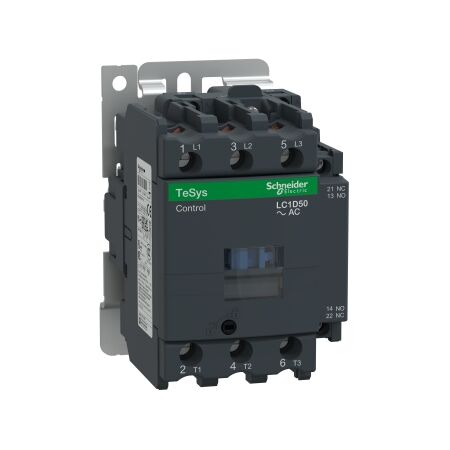

3P OLD Contactor 25KW | 1NO & 1NC Auxiliary Contacts | 48V Coil | by Clipsal
The 3P OLD Contactor 25KW is designed for reliable industrial motor control, featuring 1 normally open and 1 normally closed auxiliary contact. Rated for 25kW and 50A with a 48V AC coil, this robust contactor is perfect for HVAC systems, lighting circuits, and general power switching in commercial environments. Built to comply with IEC standards, it ensures safe and efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P OLD Contactor 25KW | 1NO & 1NC Auxiliary Contacts | 48V Coil | by Clipsal
Brand: Clipsal
SKU: SCHLC1D50E7
Alternatively Known As: Clipsal LC1D50E7, 3 Pole Contactor 25kW, Schneider TeSys D Contactor, Industrial Power Contactor, 50A Contactor 48V Coil
Technical Specifications
- Number of Poles: 3P (3NO main contacts)
- Auxiliary Contacts: 1NO + 1NC
- Rated Operational Power: 25kW (AC-3/AC-3e, ≤440V)
- Rated Operational Current: 50A
- Coil Voltage: 48V AC 50/60Hz
- Terminal Type: Screw clamp
- Series: TeSys Deca
- Conforms to IEC 60947-4-1
- Dimensions (H x L x W): 120mm x 130mm x 77mm
- Weight: 0.7 kg
Key Features
- Three-pole (3P) contactor with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact
- Rated for 25kW (AC-3/AC-3e, ≤440V, 50A)
- 48V AC 50/60Hz coil voltage
- Screw clamp terminals for secure wiring
- Robust and reliable TeSys Deca series design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Industrial motor control
- Lighting circuits
- HVAC systems
- Pumping stations
- General power switching in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption.
- Durable design minimizes replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for industrial and commercial motor control, lighting, and power switching applications.
