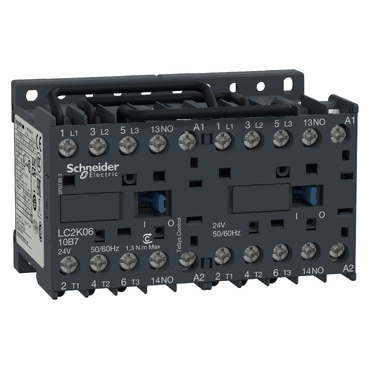

3P Reversing Contactor 4kW | 3 Poles & 1 NO Auxiliary Contact | Compact Design | by Clipsal
The 3P Reversing Contactor 4kW is designed for efficient motor control in industrial automation applications. With 3 poles and 1 normally open auxiliary contact, it ensures reliable switching for AC-3 applications. Ideal for HVAC systems, pumps, and conveyor systems, this compact contactor is perfect for licensed electricians looking to enhance machinery performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Reversing Contactor 4kW | 3 Poles & 1 NO Auxiliary Contact | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHLC2K0910D7
Alternatively Known As: 3 pole reversing contactor, 4kW motor contactor, Clipsal LC2K0910D7, reversing motor starter, industrial contactor
Technical Specifications
- Rated operational power: 4kW (AC-3, 400V)
- Number of poles: 3
- Auxiliary contacts: 1 NO
- Control voltage: 110V AC 50/60Hz
- Rated operational current: 9A (AC-3)
- Mounting: DIN rail or screw
- Conforms to IEC 60947-4-1
- Operating temperature: -5°C to +60°C
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.35 kg
Key Features
- 3-pole reversing contactor for 4kW motors
- 1 normally open (NO) auxiliary contact
- Compact design for easy panel integration
- Reliable switching for AC-3 applications
- DIN rail or screw mounting options
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control for industrial automation
- Reversing applications in machinery
- HVAC systems
- Pumps and compressors
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient motor control, reducing energy waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal 3P Reversing Contactor 4kW 3P 1NO (SCHLC2K0910D7) is available for immediate purchase. Ideal for industrial motor control and automation applications.
