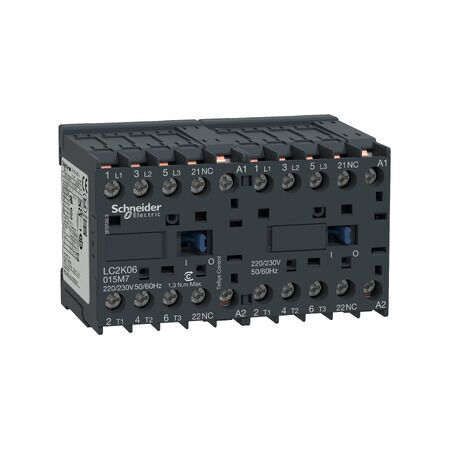

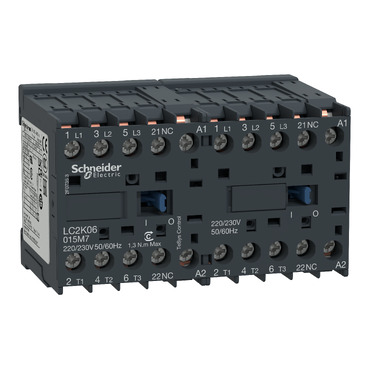

3P Reversing Contactor 9A AC3 | 4kW Power Rating | 48VAC Coil Voltage | Compact Design | @Pack of 1 | by Clipsal
The 3P Reversing Contactor 9A AC3 is designed for efficient motor control in industrial applications, featuring a robust 4kW power rating and a 48VAC coil voltage. Ideal for reversing three-phase motors and automation panels, this compact contactor ensures reliable switching and conforms to IEC standards, making it a perfect choice for pumps, conveyors, and machinery requiring forward/reverse operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Reversing Contactor 9A AC3 | 4kW Power Rating | 48VAC Coil Voltage | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC2K09015E7
Alternatively Known As: 3P Reversing Contactor, 9A Motor Contactor, 4kW Reversing Contactor, Clipsal SCHLC2K09015E7, Three Phase Reversing Contactor
Technical Specifications
- Type: 3P Reversing Contactor
- Rated Operational Current (AC3): 9A
- Power Rating: 4kW (400V)
- Coil Voltage: 48VAC
- Utilization Category: AC3
- Conforms to IEC 60947-4-1
- Mechanical life: 10 million operations
- Electrical life: 1 million operations (AC3)
- Dimensions (H x L x W): 80mm x 90mm x 45mm
- Weight: 0.45 kg
Key Features
- Three-phase reversing contactor
- Rated operational current: 9A (AC3)
- Power rating: 4kW at 400V
- Coil voltage: 48VAC
- Compact design for easy panel integration
- Reliable switching for motor control applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Reversing three-phase motors
- Automation panels
- Pumps, conveyors, and machinery requiring forward/reverse operation
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient motor control, reducing energy waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Reversing Contactor 9A AC3 4kW 48VAC (SCHLC2K09015E7) is available for immediate purchase. Ideal for industrial motor control and automation applications.
