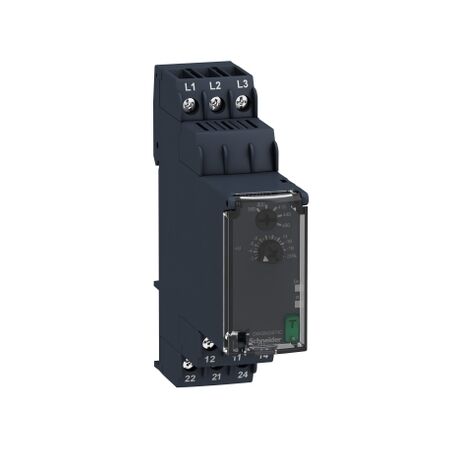

3P Undervoltage Control Relay RM22-TU | 380–480V AC | 2 C/O Relay Outputs | LED Status Indicators | @Pack of 1 | by Clipsal
The 3P Undervoltage Control Relay RM22-TU is designed for three-phase voltage monitoring, featuring a control voltage range of 380–480V AC and two changeover relay outputs. Ideal for industrial motor protection and equipment monitoring, this relay ensures reliable operation with LED status indicators for quick diagnostics and easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Undervoltage Control Relay RM22-TU | 380–480V AC | 2 C/O Relay Outputs | LED Status Indicators | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRM22TU23
Alternatively Known As: Three-phase undervoltage relay, phase monitoring relay, RM22-TU relay, voltage control relay, Clipsal phase failure relay
Technical Specifications
- Control voltage: 380–480V AC (three-phase)
- Output contacts: 2 C/O (SPDT) relays
- Mounting: DIN rail
- Status indication: LED
- Operating temperature: -20°C to +60°C
- Frequency: 50/60Hz
- Response time: < 200ms
- IP20 protection (housing)
- Dimensions (H x L x W): 78mm x 100mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Three-phase undervoltage and phase failure monitoring
- Voltage range: 380–480V AC
- 2 changeover (C/O) relay outputs
- DIN rail mounting for easy installation
- LED status indicators for quick diagnostics
- Compact design for panel integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial motor protection
- Three-phase equipment monitoring
- Pumps, compressors, and HVAC systems
- Electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents equipment damage and energy waste by disconnecting loads during abnormal voltage conditions.
- Enhances system reliability, reducing downtime and maintenance.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P Undervoltage Control Relay RM22-TU (SCHRM22TU23) is available for immediate purchase. Ideal for industrial and commercial applications requiring reliable three-phase voltage monitoring and protection.
