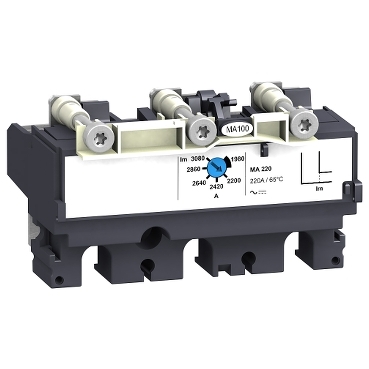

3P3D mA100 TRIP Unit | 100A Rated | Adjustable Thermal & Magnetic Settings | 415V AC | @Pack of 1 | by Clipsal
The 3P3D mA100 TRIP Unit is designed for three-phase circuit protection, featuring adjustable thermal and magnetic trip settings for precise control. Rated for 100A applications and compatible with Clipsal and Schneider Electric circuit breakers, this unit is ideal for commercial and industrial electrical distribution boards, ensuring safety and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3D mA100 TRIP Unit | 100A Rated | Adjustable Thermal & Magnetic Settings | 415V AC | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429120
Alternatively Known As: 3 Pole 3 Phase 100A Trip Unit, Clipsal Trip Unit SCHLV429120, Schneider 3P3D mA100 Trip Unit, Circuit Breaker Trip Unit 100A
Technical Specifications
- Poles: 3
- Phases: 3
- Rated Current: 100A
- Adjustable thermal and magnetic trip settings
- Compatible with LV429120 circuit breaker frames
- Operating voltage: 415V AC
- Mounting: Plug-in for circuit breaker frame
- Dimensions (H x L x W): 130mm x 120mm x 75mm
- Weight: 1.2 kg
Key Features
- Three-pole, three-phase design for comprehensive circuit protection
- Adjustable thermal and magnetic trip settings for precise protection
- Rated for 100A applications
- Compatible with Clipsal and Schneider Electric circuit breakers
- Robust construction for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Switchboards requiring adjustable trip protection
- Protection of three-phase electrical circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and equipment damage
- Supports efficient energy management by preventing overloads
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3D mA100 TRIP Unit SCHLV429120 is available for immediate purchase. Ideal for commercial and industrial switchboards requiring reliable three-phase circuit protection.
