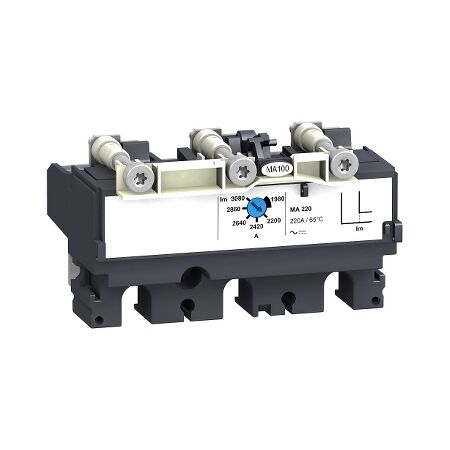

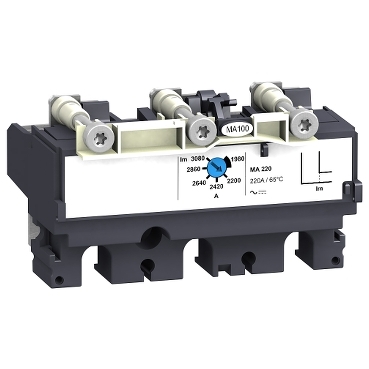

3P3D mA12.5 TRIP Unit | Electronic Trip Technology | Earth Leakage Protection | Plug-in for MCCB | @Pack of 1 | by Clipsal
The 3P3D mA12.5 TRIP Unit offers advanced earth leakage protection with a sensitivity of 12.5mA, designed specifically for three-phase distribution systems. This electronic trip unit is compatible with Clipsal MCCBs, ensuring precise fault detection and enhancing safety in commercial and industrial electrical installations. Ideal for critical infrastructure, it provides fast-acting protection to minimize downtime and reduce the risk of electrical fires.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3D mA12.5 TRIP Unit | Electronic Trip Technology | Earth Leakage Protection | Plug-in for MCCB | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429123
Alternatively Known As: Clipsal earth leakage trip unit, MCCB trip unit, 3 phase trip unit, SCHLV429123, Clipsal 3P3D trip module, Clipsal circuit breaker accessory
Technical Specifications
- Type: Electronic trip unit
- Poles: 3P (Three Phase)
- Protection: Earth leakage (mA12.5 sensitivity)
- Trip Function: Adjustable electronic trip
- Application: For use with compatible MCCBs
- Rated Current: Compatible with MCCBs up to 125A
- Mounting: Plug-in module for MCCB
- Response Time: Fast-acting for sensitive protection
- Dimensions (H x L x W): 120mm x 80mm x 75mm
- Weight: 0.5 kg
Key Features
- Provides advanced earth leakage protection with 12.5mA sensitivity
- Designed for three-phase, three-wire distribution systems
- Plug-in compatibility with Clipsal MCCBs
- Electronic trip technology for precise fault detection
- Enhances safety in commercial and industrial electrical systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial switchboards
- Industrial electrical panels
- Critical infrastructure requiring sensitive earth leakage protection
- Data centers and server rooms
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces risk of electrical fires and equipment damage
- Supports safe and efficient energy distribution
- Minimizes downtime due to electrical faults
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Clipsal 3P3D mA12.5 TRIP Unit (SCHLV429123) is available for immediate purchase. Ideal for commercial and industrial electrical installations requiring advanced earth leakage protection.
