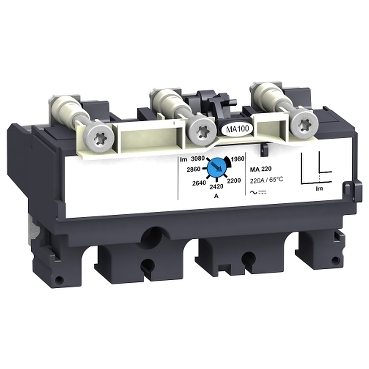

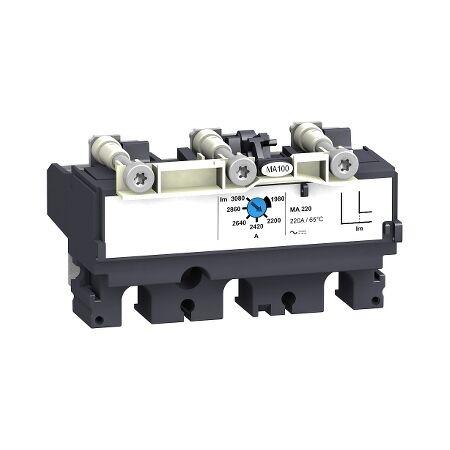

3P3D mA150 TRIP Unit | Magnetic Trip Unit | 150A Rating | Direct Fit for NSX 160/250 | @Pack of 1 | by Clipsal
The 3P3D mA150 TRIP Unit is a magnetic trip unit designed for ComPact NSX 160/250 circuit breakers, providing reliable 150A short-circuit protection. Ideal for industrial and commercial electrical distribution, this unit ensures fast response to faults and easy integration, enhancing safety and efficiency in electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3D mA150 TRIP Unit | Magnetic Trip Unit | 150A Rating | Direct Fit for NSX 160/250 | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV430500
Alternatively Known As: ['Clipsal MA150 Trip Unit', 'ComPact NSX 160/250 Trip Unit', '3 Pole 150A Magnetic Trip Unit', 'SCHLV430500 Trip Unit', 'NSX Circuit Breaker Trip Unit']
Technical Specifications
- Type: Magnetic trip unit
- Rated current: 150A
- Poles: 3 (3P3D)
- Compatibility: ComPact NSX 160/250 circuit breakers
- Trip function: Magnetic (short-circuit protection)
- Mounting: Direct fit for NSX 160/250
- Operating voltage: As per NSX 160/250 specifications
- Dimensions (H x L x W): 60mm x 120mm x 90mm
- Weight: 0.7 kg
Key Features
- Magnetic trip unit for ComPact NSX 160/250 circuit breakers
- 3 poles, 3D (three-pole, three-phase) configuration
- 150A magnetic trip rating for reliable circuit protection
- Designed for easy integration and replacement
- Ensures fast response to short-circuit conditions
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with low voltage switchgear and circuit breaker systems.
Applications
- Industrial electrical distribution panels
- Commercial switchboards
- Protection of low voltage circuits in factories and large buildings
- Upgrading or replacing trip units in ComPact NSX 160/250 circuit breakers
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Supports efficient energy management by ensuring proper circuit protection
- Long service life reduces need for frequent replacements
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3D mA150 TRIP Unit (SCHLV430500) is available for immediate purchase. Ideal for industrial and commercial electrical protection applications.
