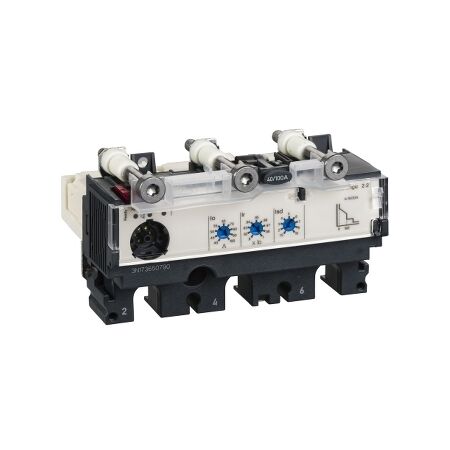

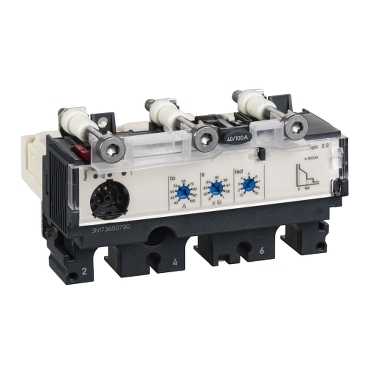

3P3T Micrologic 2.2 100A Circuit Breaker | Electronic Trip Unit | 36kA Breaking Capacity | by Clipsal
The 3P3T Micrologic 2.2 100A Circuit Breaker offers advanced protection with its electronic trip unit and high breaking capacity of 36kA at 415V AC. Designed for commercial and industrial electrical distribution systems, it ensures reliable circuit protection and compliance with IEC standards. Ideal for main and sub-main switchboards, this breaker enhances safety and efficiency in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T Micrologic 2.2 100A Circuit Breaker | Electronic Trip Unit | 36kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV429070
Alternatively Known As: Micrologic 2.2 100A Circuit Breaker, 3P3T MCCB, LV429070, Schneider Micrologic 2.2, 100A 3 Pole Breaker
Technical Specifications
- Poles: 3
- Trip Unit: Micrologic 2.2 electronic
- Rated Current: 100A
- Breaking Capacity: 36kA at 415V AC
- Rated Operational Voltage: 690V AC
- Mounting: Fixed
- Standards: IEC 60947-2
- Terminal Connection: Front
- Protection: Overload and short-circuit
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- 3 pole, 3 trip (3P3T) configuration for comprehensive circuit protection
- Micrologic 2.2 electronic trip unit for advanced protection and monitoring
- Rated current: 100A
- High breaking capacity for enhanced safety
- Suitable for use in low voltage distribution systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of electrical circuits in buildings
- Panelboards and switchgear assemblies
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves electrical system efficiency by reducing downtime due to faults
- Supports safe and reliable power distribution, minimizing energy waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T Micrologic 2.2 100A Trip Circuit Breaker (SCHLV429070) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring advanced protection.
