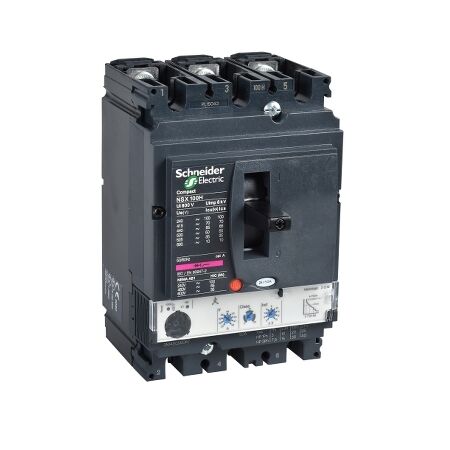

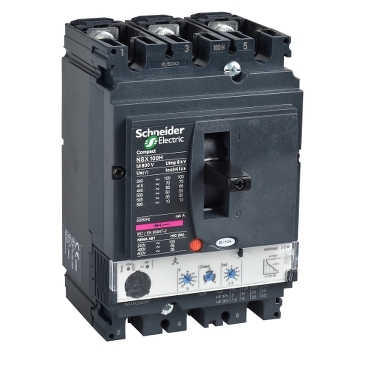

3P3T Micrologic 2.2 100A Circuit Breaker | NSX10 Frame Size | High Breaking Capacity | by Clipsal
The 3P3T Micrologic 2.2 100A Circuit Breaker is designed for reliable protection in commercial and industrial electrical distribution systems. Featuring a compact NSX10 frame size and advanced electronic trip unit, it ensures high breaking capacity and compliance with IEC standards. Ideal for main and sub-main circuit protection, this breaker enhances energy efficiency and minimizes downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T Micrologic 2.2 100A Circuit Breaker | NSX10 Frame Size | High Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV429790
Alternatively Known As: NSX10 Circuit Breaker, Micrologic 2.2 100A, 3P3T MCCB, SCHLV429790, Schneider NSX10 100A Breaker
Technical Specifications
- Rated current: 100A
- Number of poles: 3
- Trip unit: Micrologic 2.2 electronic
- Frame size: NSX10
- Breaking capacity: Up to 36kA at 415V AC
- Standards: IEC 60947-2
- Mounting: Fixed
- Operating voltage: 690V AC max
- Frequency: 50/60Hz
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 3.5 kg
Key Features
- 3 pole, 3 trip (3P3T) configuration for enhanced protection
- Micrologic 2.2 electronic trip unit for advanced protection and monitoring
- Rated current: 100A
- NSX10 frame size for compact installation
- High breaking capacity for reliable circuit protection
- Suitable for use in low voltage applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and building management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by reducing electrical losses
- Supports safe and reliable power distribution, minimizing downtime and waste
- Designed for long service life, reducing replacement frequency
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T Micrologic 2.2 100A NSX10 Circuit Breaker (SCHLV429790) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
