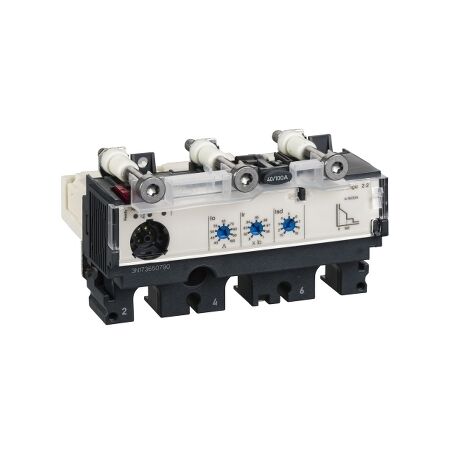

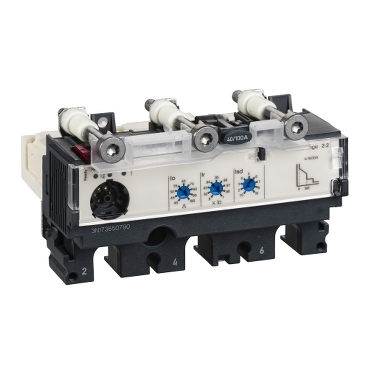

3P3T Micrologic 2.2 Circuit Breaker | 160A Rated Current | High Breaking Capacity | Compact Design | @Pack of 1 | by Clipsal
The 3P3T Micrologic 2.2 Circuit Breaker is designed for advanced protection in commercial and industrial electrical distribution systems. With a rated current of 160A and a high breaking capacity of 36kA at 415V AC, it ensures safety and reliability. Ideal for main and sub-main switchboards, this compact breaker is perfect for both new installations and retrofits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T Micrologic 2.2 Circuit Breaker | 160A Rated Current | High Breaking Capacity | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV430470
Alternatively Known As: 160A Micrologic 2.2 Circuit Breaker, Clipsal MCCB 160A, SCHLV430470, 3 Pole 160A Breaker, Micrologic 2.2 Trip Unit Breaker
Technical Specifications
- Rated current: 160A
- Number of poles: 3
- Trip unit: Micrologic 2.2 electronic
- Breaking capacity: 36kA at 415V AC
- Rated operational voltage: 690V AC
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Operating temperature: -25°C to +70°C
- Frequency: 50/60Hz
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 3.5 kg
Key Features
- 3 pole, 3 trip (3P3T) configuration for comprehensive circuit protection
- Micrologic 2.2 electronic trip unit for advanced protection and monitoring
- Rated current: 160A
- High breaking capacity for enhanced safety
- Compact design for easy integration into switchboards
- Suitable for both new installations and retrofits
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of electrical circuits in buildings
- Panelboards and switchgear assemblies
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves electrical system efficiency by reducing downtime and energy waste
- Supports safe operation, minimizing risk of electrical fires and associated environmental hazards
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T Micrologic 2.2 160A Circuit Breaker (SCHLV430470) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring advanced protection and monitoring.
