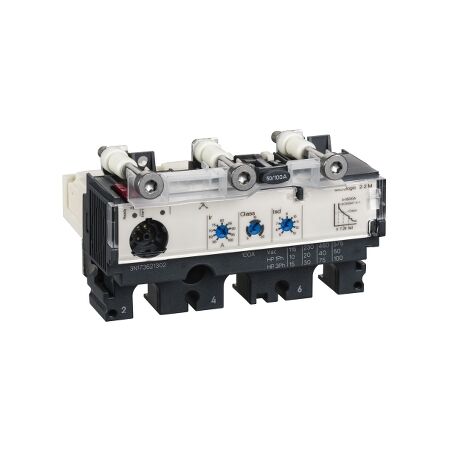

3P3T Micrologic 2.2 M 150A TRI | Electronic Trip Unit | Overload & Short-Circuit Protection | by Clipsal
The 3P3T Micrologic 2.2 M 150A TRI is an electronic trip unit designed for ComPact NSX 160/250 circuit breakers, providing advanced overload and short-circuit protection. Ideal for commercial and industrial electrical distribution systems, this unit ensures high reliability and precision in circuit protection, making it essential for safeguarding electrical circuits in buildings and infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T Micrologic 2.2 M 150A TRI | Electronic Trip Unit | Overload & Short-Circuit Protection | by Clipsal
Brand: Clipsal
SKU: SCHLV430520
Alternatively Known As: Micrologic 2.2 M 150A Trip Unit, ComPact NSX 150A Circuit Breaker, SCHLV430520, 3 Pole 150A Breaker, Clipsal NSX 150A Electronic Breaker
Technical Specifications
- Type: Electronic trip unit for ComPact NSX 160/250
- Rated current: 150A
- Number of poles: 3
- Protection: Overload and short-circuit
- Trip unit: MicroLogic 2.2 M
- Mounting: For use with NSX 160/250 circuit breakers
- Operating voltage: 690V AC max
- Frequency: 50/60Hz
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- Trip unit MicroLogic 2.2 M for ComPact NSX 160/250 circuit breakers
- Electronic protection with adjustable settings
- Rated current: 150A
- 3 poles, 3d (three-pole, three-terminal)
- Advanced protection against overloads and short circuits
- High reliability and precision in circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Panel boards and switchboards
- Protection of electrical circuits in buildings and infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Efficient circuit protection minimizes energy waste from faults
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T Micrologic 2.2 M 150A TRI (SCHLV430520) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring advanced circuit protection.
