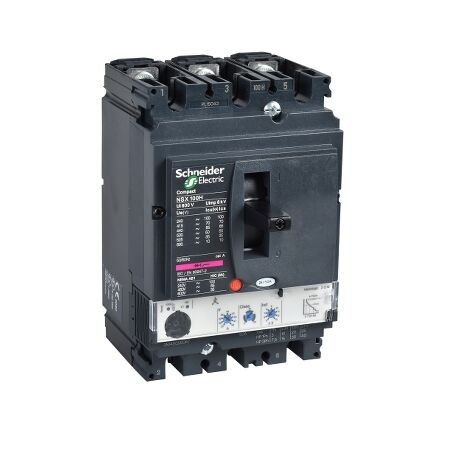

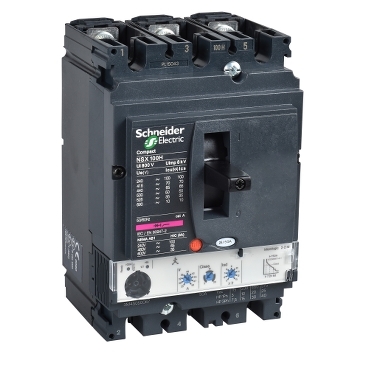

3P3T Micrologic 2.2160A NSX160 Circuit Breaker | 160A Rated Current | High Breaking Capacity | by Clipsal
The 3P3T Micrologic 2.2160A NSX160 Circuit Breaker is designed for commercial and industrial electrical distribution systems, featuring a rated current of 160A and a high breaking capacity of up to 36kA at 415V AC. With its advanced Micrologic 2.2 electronic trip unit, it provides reliable protection against overloads and short circuits, ensuring safe and efficient power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T Micrologic 2.2160A NSX160 Circuit Breaker | 160A Rated Current | High Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV430790
Alternatively Known As: NSX160 Circuit Breaker, Micrologic 2.2 MCCB, 160A MCCB, SCHLV430790, Schneider NSX160, 3P3T NSX160
Technical Specifications
- Rated current: 160A
- Number of poles: 3
- Trip unit: Micrologic 2.2 electronic
- Breaking capacity: Up to 36kA at 415V AC
- Rated operational voltage: 690V AC
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- 3 pole, 3 trip (3P3T) configuration
- Micrologic 2.2 electronic trip unit for advanced protection
- Rated current: 160A
- Compact NSX160 frame size
- High breaking capacity for enhanced safety
- Adjustable protection settings
- Suitable for both AC and DC applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Commercial and industrial electrical distribution systems
- Panelboards and switchboards
- Protection of circuits against overloads and short circuits
- Main and sub-main circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by reducing electrical losses through precise protection
- Supports safe and reliable power distribution, minimizing downtime and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T Micrologic 2.2 160A NSX160 Circuit Breaker (SCHLV430790) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
