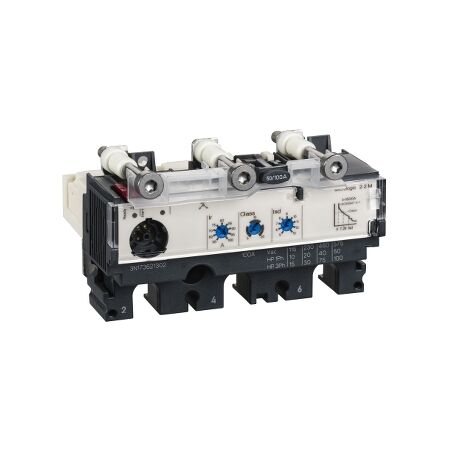

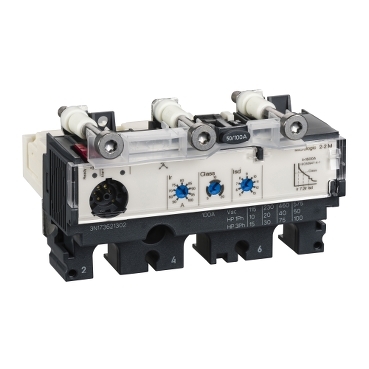

3P3T Micrologic 2.2 M 220A TRI | Electronic Trip Unit | Overload & Short Circuit Protection | by Clipsal
The 3P3T Micrologic 2.2 M 220A TRI is designed for advanced circuit protection in commercial and industrial electrical distribution systems. With a rated current of 220A and compatibility with ComPact NSX 250 circuit breakers, this electronic trip unit offers reliable overload and short circuit protection. Ideal for panel boards and switchboards, it ensures high reliability and precision in safeguarding electrical circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T Micrologic 2.2 M 220A TRI | Electronic Trip Unit | Overload & Short Circuit Protection | by Clipsal
Brand: Clipsal
SKU: SCHLV431520
Alternatively Known As: Micrologic 2.2 M 220A, NSX 250 Circuit Breaker Trip Unit, SCHLV431520, 3P3T Electronic Trip Unit, Clipsal 220A Breaker
Technical Specifications
- Rated current: 220A
- Number of poles: 3
- Trip unit type: Micrologic 2.2 M electronic
- Compatible with: ComPact NSX 250 circuit breakers
- Protection functions: Overload, short circuit
- Mounting: Fixed
- Operating voltage: 690V AC max
- Frequency: 50/60Hz
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- 3-pole, 3-trip (3P3T) configuration
- Micrologic 2.2 M electronic trip unit for advanced protection
- Rated current: 220A
- Compatible with ComPact NSX 250 circuit breakers
- Electronic protection for overloads and short circuits
- High reliability and precision in circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 standards.
Applications
- Commercial and industrial electrical distribution systems
- Panel boards and switchboards
- Protection of electrical circuits in buildings and infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Efficient circuit protection minimizes energy waste from faults
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T Micrologic 2.2 M 220A TRI (SCHLV431520) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
