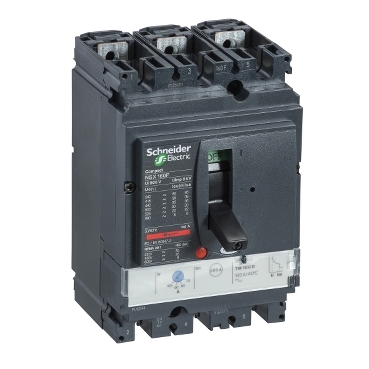

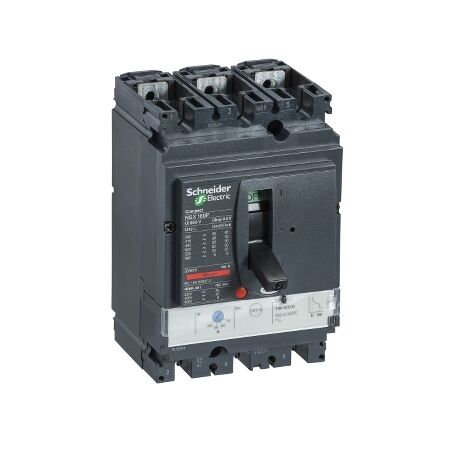

3P3T TM125D NSX160N Circuit Breaker | 125A Rated Current | 36kA Breaking Capacity | Thermal Magnetic Protection | @Pack of 1 | by Clipsal
The 3P3T TM125D NSX160N Circuit Breaker is engineered for commercial and industrial electrical distribution, featuring a robust 125A rated current and a high breaking capacity of 36kA at 415V AC. With its thermal-magnetic protection and compact design, it ensures reliable performance in demanding environments, making it ideal for switchboards and machinery protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T TM125D NSX160N Circuit Breaker | 125A Rated Current | 36kA Breaking Capacity | Thermal Magnetic Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV430841
Alternatively Known As: NSX160N Circuit Breaker, Compact NSX160N 125A, SCHLV430841, Schneider NSX160N, 3P3T TM125D Circuit Breaker
Technical Specifications
- Rated current: 125A
- Number of poles: 3
- Trip unit: TMD (Thermal Magnetic)
- Breaking capacity: 36kA at 415V AC
- Rated operational voltage: 690V AC
- Frequency: 50/60Hz
- Standard compliance: IEC 60947-2
- Mounting: Fixed
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- Compact NSX160N circuit breaker with TMD trip unit
- Rated current: 125A
- 3 poles, 3 trip (3P3T) configuration
- High breaking capacity for enhanced safety
- Thermal-magnetic protection
- Robust and reliable design for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution panels
- Main and sub-main circuit protection
- Switchboards in commercial buildings
- Industrial machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Designed for long operational life, reducing replacement frequency and waste
- Supports energy-efficient electrical distribution by minimizing losses
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T TM125D NSX160N Circuit Breaker (SCHLV430841) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
