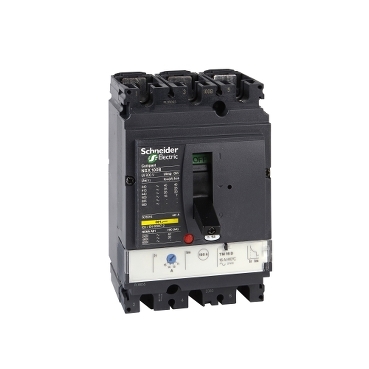

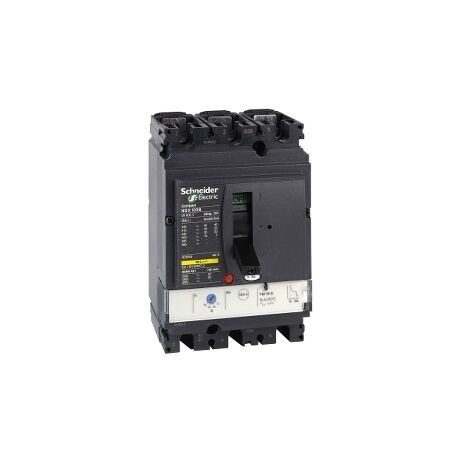

3P3T TM25D NSX100B Circuit Breaker | 25A TMD Trip Unit | 25kA Breaking Capacity | by Clipsal
The 3P3T TM25D NSX100B Circuit Breaker is designed for robust protection in commercial and industrial electrical distribution systems. With a 25A thermal-magnetic trip unit and a breaking capacity of 25kA at 415VAC, it ensures reliable circuit protection against overloads and short circuits. Ideal for switchboards and panel boards, this compact MCCB is built for high reliability and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T TM25D NSX100B Circuit Breaker | 25A TMD Trip Unit | 25kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV429556
Alternatively Known As: NSX100B 3P3T Circuit Breaker, Compact NSX100B 25A, Schneider LV429556, 3 Pole 25A MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Poles: 3
- Rated Current: 25A
- Trip Unit: TMD (Thermal Magnetic)
- Breaking Capacity: 25kA at 415VAC
- Rated Voltage: 415VAC
- Standards: IEC 60947-2
- Mounting: Fixed
- Operating Temperature: -25°C to +70°C
- Dimensions (H x L x W): 161mm x 86mm x 76mm
- Weight: 1.5 kg
Key Features
- 3 pole, 3 trip (3P3T) configuration
- Compact NSX100B circuit breaker
- 25A TMD (thermal-magnetic) trip unit
- Breaking capacity: 25kA at 415VAC
- Robust protection against overloads and short circuits
- High reliability and long service life
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Switchboards and panel boards
- Protection of circuits against overloads and short circuits
- Suitable for use in factories, warehouses, and large buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Designed for long operational life, reducing replacement frequency and waste
- Compliant with RoHS directives for hazardous substances
- Supports energy-efficient electrical distribution by minimizing losses
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T TM25D NSX100B Circuit Breaker (SCHLV429556) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring reliable circuit protection.
