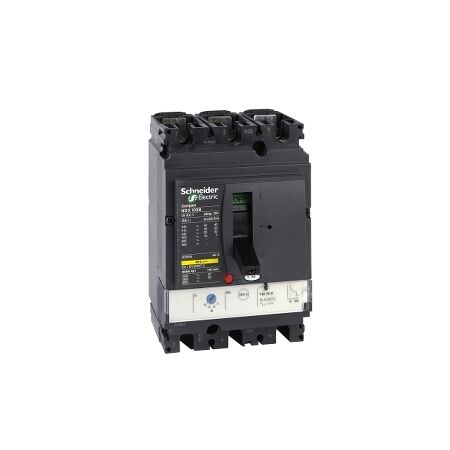

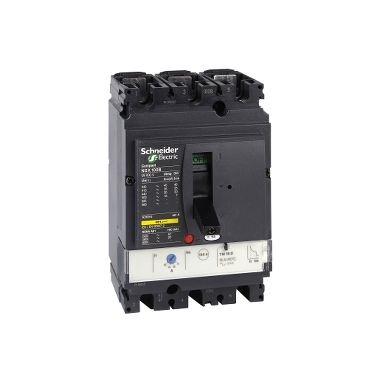

3P3T TM25T NSX100H Circuit Breaker | 25A Rated Current | 36kA Breaking Capacity | Thermal Magnetic Protection | @Pack of 1 | by Clipsal
The 3P3T TM25T NSX100H Circuit Breaker is designed for commercial and industrial electrical distribution, featuring a 25A rated current and a high breaking capacity of 36kA at 415V AC. With its thermal magnetic protection and robust design, this circuit breaker ensures reliable operation and safety in various applications, including switchboards and motor protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T TM25T NSX100H Circuit Breaker | 25A Rated Current | 36kA Breaking Capacity | Thermal Magnetic Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429676
Alternatively Known As: NSX100H Circuit Breaker, Compact NSX100H 25A, 3 Pole Circuit Breaker, SCHLV429676, Schneider NSX100H
Technical Specifications
- Type: Compact NSX100H
- Trip Unit: TMD (Thermal Magnetic)
- Rated Current: 25A
- Number of Poles: 3
- Breaking Capacity: 36kA at 415V AC
- Rated Operational Voltage: 690V AC
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2
- Dimensions (H x L x W): 161mm x 86mm x 76mm
- Weight: 1.5 kg
Key Features
- Compact NSX100H circuit breaker with TMD trip unit
- 3 poles, 3 trip (3P3T) configuration
- Rated current: 25A
- High breaking capacity for enhanced safety
- Thermal-magnetic protection
- Robust design for reliable operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution panels
- Main and sub-main circuit protection
- Switchboards in factories, offices, and large buildings
- Motor protection and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Designed for long service life, reducing replacement frequency and waste
- Compliant with RoHS for reduced hazardous substances
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T TM25T NSX100H Circuit Breaker (SCHLV429676) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring reliable circuit protection.
