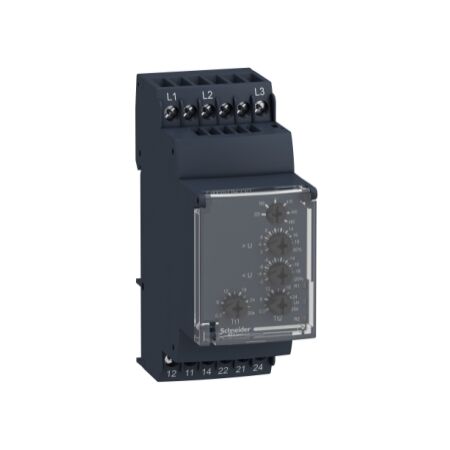

3PH Voltage Control Relay 5A 220-480VAC IP20 Clipsal
Clipsal Phase Voltage Control Relay AC features 5A rated current, 220.480V AC and 10000 cycles. LED indicators for power and relay status.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 5 A
- Voltage range: 220...480 V AC
- Electrical durability: 10,000 cycles
- Mechanical durability: 30,000,000 cycles
- IP rating: IP20 (terminals), IP30 (casing)
- Operating temperature: -20...50 °C
- Control circuit frequency: 50...60 Hz +/- 15 %
- Nominal output current: 5 A
- Maximum switching voltage: 250 V AC/DC
- Dimensions (H x L x W): 45mm x 97mm x 35mm
- Weight: 0.1 kg
Key Features
- LED indicators for power and relay status.
- Adjustable time delay from 0.3 to 30 seconds.
- High electrical and mechanical durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: 3-phase supply systems
Standards & Compliance
- Complies with IEC 60255 for safety and performance standards.
Environmental Benefits
- Green Premium product with packaging made from recycled materials.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony Control Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable voltage control.
