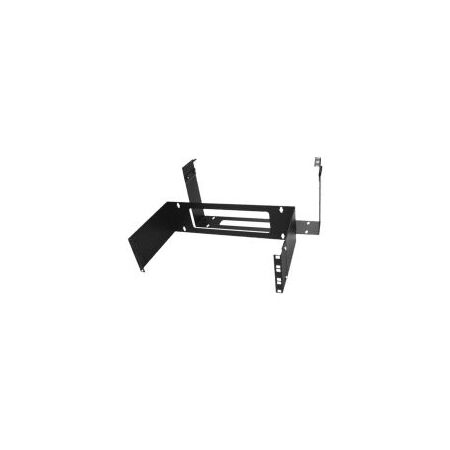

3RU Hinged Wall Mount Bracket 170mm Deep 19in Redback
Redback 3RU hinged wall mount bracket features 170mm depth, 19in rack mounting, 4 cage nuts, and 5kg rated load. Ideal for switches and patch panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3RU Hinged Wall Mount Rack Bracket, 19-inch Wall Mount Bracket, Redback BRK-3U-B
Technical Specifications
- Model: BRK-3U-B
- Rack Capacity: 3RU
- Rack Width: 19 inch nominal; 486mm overall product width
- Depth: 170mm
- Height: 133mm
- Rated Load: 5kg
- Mounting Orientation: Horizontal wall mounting
- Included Hardware: 4 cage nuts
- Hinge: Included for rear equipment access
- Finish: Powder-coated metal
- Compatible Equipment: 19-inch switches, patch panels and other short-depth rack equipment
- Rack Compatibility: Designed around standard 19-inch rack mounting dimensions
- Dimensions (H x L x W): 133mm x 170mm x 486mm
- Weight: 1.4 kg
Key Features
- Provides 3RU of 19-inch rack mounting space
- Hinged design allows access to the rear of installed equipment
- Compact 170mm depth suits switches, patch panels and other shallow equipment
- Includes four cage nuts
- Rated to support up to 5kg of equipment
- Space-saving alternative to a full-size rack cabinet
- Suitable for horizontal wall mounting
Professional Installation Requirements
- Wall installation should be carried out by a competent installer using fixings suitable for the wall construction and the combined weight of the bracket and equipment. Do not exceed the 5kg rated load.
Applications
- Mounting network switches on a wall
- Installing 19-inch patch panels in communications rooms
- Small telecommunications and data-network installations
- Home network and security equipment installations
- Space-constrained IT and structured-cabling applications
Environmental Benefits
- Steel construction can be recycled at the end of the product's service life
- Powder-coated metal finish provides corrosion and wear resistance, supporting extended product use
- Compact construction uses less material and space than a complete rack cabinet
Warranty Information
Redback Racks rack products are advertised with a 5-year warranty; confirm the applicable warranty terms and exclusions with the authorised distributor before purchase. ([pssdistributors.com.au](https://www.pssdistributors.com.au/wm-6418?utm_source=openai))
Available Now
Available through Redback Racks and authorised Australian distributors; live stock status should be confirmed with the supplying distributor. ([mssdatasolutions.com.au](https://www.mssdatasolutions.com.au/p/racks-and-cabinets/data-cabinets/wall-mount/brk-3u-b?utm_source=openai))
