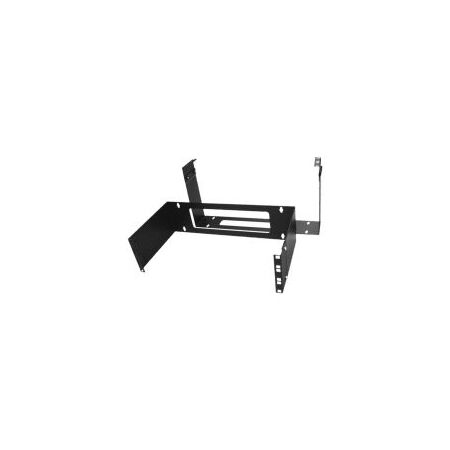

3RU Hinged Wall Mount Bracket 305mm Deep 19in Redback
Redback 3RU hinged wall mount bracket features 305mm depth, 19in rack mounting, 4 cage nuts, and 5kg rated load. Ideal for switches and patch panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3RU Hinged Wall Mount Rack Bracket, 19-inch Wall Mount Bracket, Redback BRK-3U-A
Technical Specifications
- Model: BRK-3U-A
- Rack Capacity: 3RU
- Rack Mounting: 19-inch standard rack format
- Overall Width: 520.7mm
- Depth: 305mm
- Overall Height: 133.4mm
- Rated Load: 5kg
- Included Hardware: 4 cage nuts
- Mounting Orientation: Horizontal wall mounting
- Construction: Steel bracket with hinged rack section
- Colour: Black
- Dimensions (H x L x W): 133.4mm x 305mm x 520.7mm
- Weight: 2.2 kg
Key Features
- Provides 3RU of 19-inch rack mounting space on a wall
- 305mm depth accommodates switches, patch panels and other shallow rack equipment
- Hinged rack section allows improved access to rear cabling
- Includes four cage nuts
- Rated for loads up to 5kg
- Space-saving alternative to a full-sized rack
Professional Installation Requirements
- Install on a structurally suitable wall using appropriate fixings for the wall substrate. Ensure the mounting surface and fixings can support the bracket and its maximum 5kg equipment load.
Applications
- Wall-mounted network switches
- Patch panels and termination hardware
- Small telecommunications installations
- Data and communications equipment in space-constrained areas
- Residential, commercial and light industrial network installations
Environmental Benefits
- Steel construction is durable and recyclable at end of service life
- Reusable rack format supports equipment servicing and replacement without replacing the wall bracket
- Long service life can reduce material consumption and installation waste compared with repeated replacement
Warranty Information
Specific Redback Racks warranty terms were not published in the available manufacturer and distributor documentation. Australian Consumer Law guarantees apply where applicable; retain proof of purchase and confirm any voluntary warranty with the supplying distributor.
Available Now
Available through Redback Racks and authorised Australian distributors, subject to distributor stock levels.
